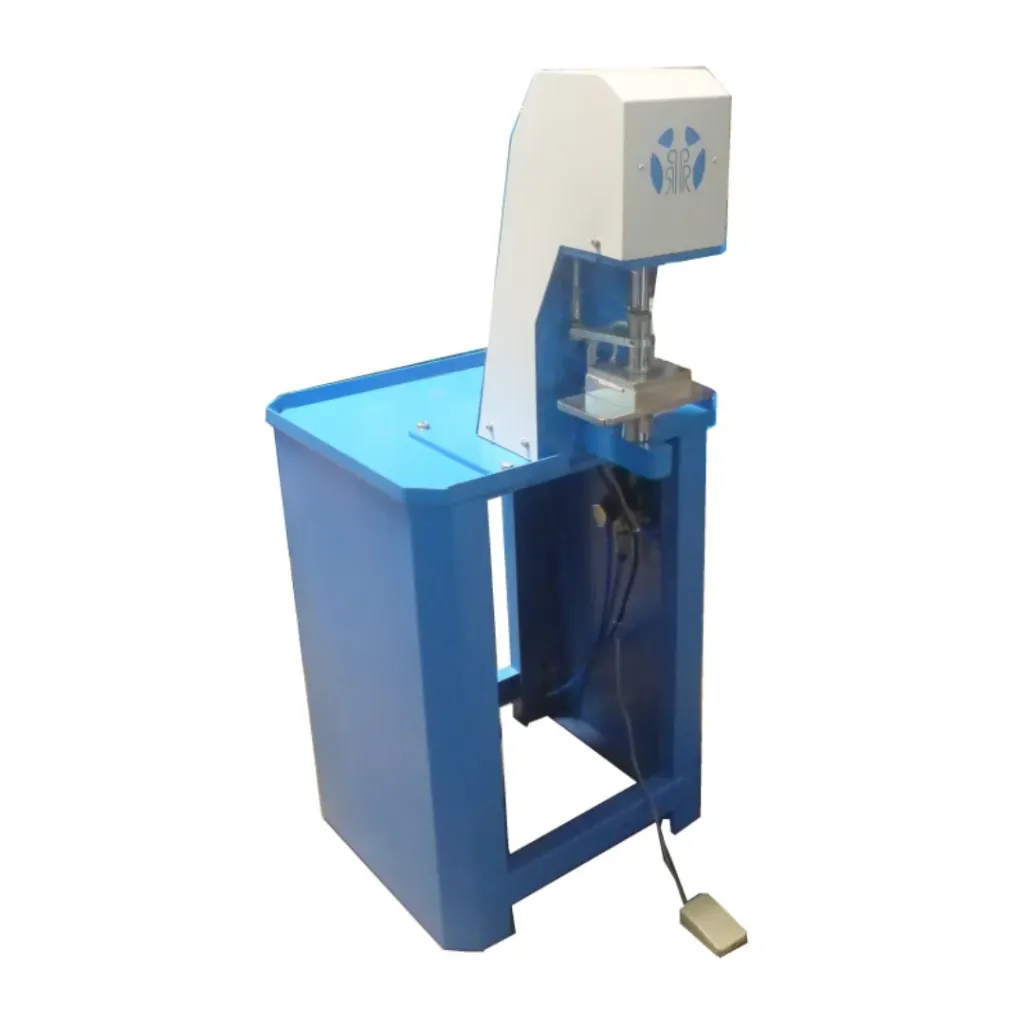

Flat Press Machine

The PR 1035 Flat Press Machine uses controlled heat and pneumatic pressure to flatten seams, bond reinforcements, attach tapes, and press footwear upper components.

Bullet Points

Designed for flattening seams, bonding reinforcements, attaching tapes, and pressing footwear upper components
Applies controlled heat and pressure over a flat working surface for uniform pressing results
Improves component appearance, bonding quality, and finishing accuracy before lasting and assembly
Independently controlled heated platens ensure consistent temperature distribution across the pressing area
Pneumatic system delivers uniform pressure for repeatable results on leather, synthetic, and textile materials
Compact design, adjustable controls, and durable construction support better productivity and industrial reliability

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Flat pressing is an important operation in footwear upper manufacturing, helping to achieve smooth surfaces and improved component appearance before further assembly processes. The PR 1035 Flat Press Machine is specifically designed to apply uniform heat and pressure to upper components, ensuring accurate flattening and professional finishing results.

The machine's thermo-pneumatic system allows precise control over heat and pressing cycles, making it suitable for a variety of footwear materials. Its flexible working area can be customized according to production requirements, providing manufacturers with a versatile solution for different component sizes and applications.

Thermo-pneumatic flat pressing system
Adjustable temperature control
Adjustable dwell time and pressing cycle
Heat and pressure regulation system
Customizable working area
Suitable for upper and closing department operations
Compact and operator-friendly design
Consistent pressing performance
Heavy-duty industrial construction
Low maintenance operation

Feature	Benefit
Thermo-Pneumatic System	Combines heat and pressure for superior finishing results
Adjustable Temperature Control	Suitable for different materials and applications
Adjustable Dwell Time	Provides process flexibility and consistency
Regulated Pressing Cycle	Ensures uniform component finishing
Customizable Working Area	Adapts to varying production requirements
Compact Design	Saves factory floor space
User-Friendly Operation	Reduces operator fatigue and training time
Heavy-Duty Construction	Ensures long service life and reliability

Specification	Details
Model	PR 1035
Voltage	240V AC
Power	0.3 kW
Air Pressure	6 Bar
Machine Weight	70 kg
Gross Weight	120 kg
Machine Dimensions (mm)	585 × 615 × 1300
Packing Dimensions (mm)	735 × 765 × 1450

The PR 1035 Flat Press Machine is commonly used for:

Flat pressing of upper components
Upper and closing department operations
Seam flattening
Leather component finishing
Synthetic upper finishing
Removal of wrinkles and bulges
Upper preparation before assembly
Sports shoe manufacturing
Formal footwear production
Safety shoe manufacturing

The quality of footwear uppers depends significantly on proper finishing and component preparation. The PR 1035 Flat Press Machine provides precise heat and pressure control, ensuring smooth, wrinkle-free upper components with a professional finish. Its compact design, adjustable process settings, and reliable thermo-pneumatic operation make it an excellent choice for footwear manufacturers seeking improved product quality, production consistency, and operational efficiency.
