Rotary Fusing

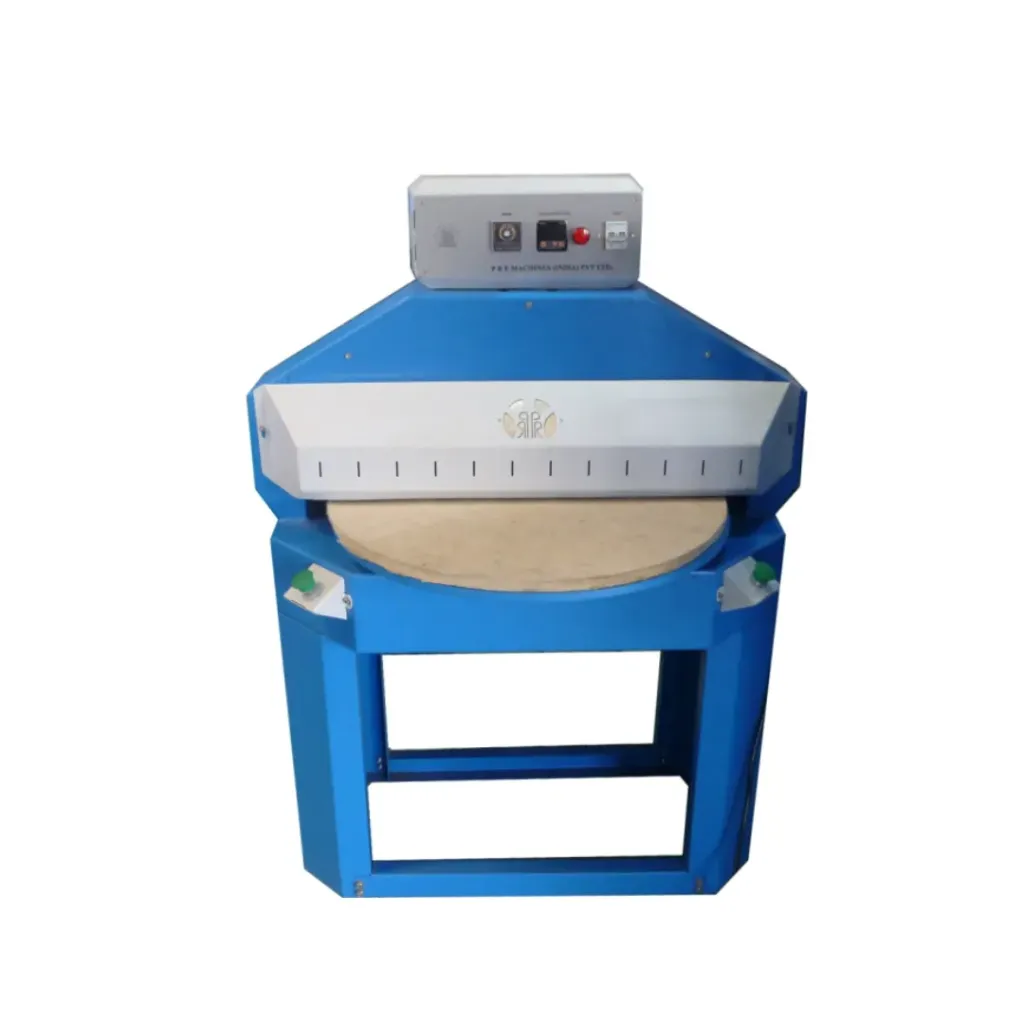

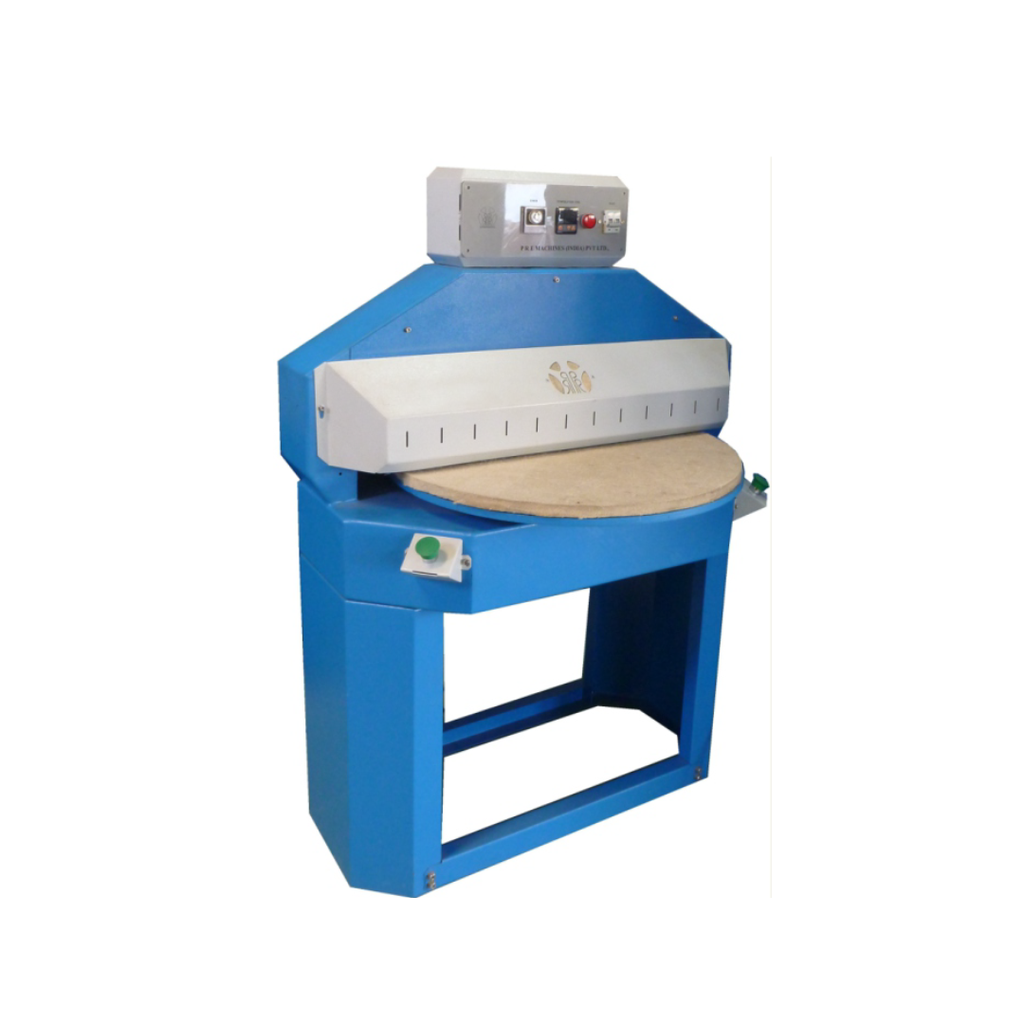

The PR 1040 Rotary Fusing Machine attaches thermo interlinings to leather and synthetic footwear components using controlled heat, pressure, and a rotating worktable system.

Bullet Points

  • Designed for fusing thermo interlinings onto leather and synthetic footwear components
  • Rotating worktable allows loading and fusing operations to run simultaneously for better productivity
  • Adjustable temperature, pressure, and dwell time settings support different material requirements
  • Advanced heat and pressure control ensures consistent bonding quality with reduced downtime
  • Felt-covered rotating table and Teflon-protected aluminium mould provide uniform heat transfer and prevent material damage
  • Compact footprint, operator-friendly design, and reliable operation make it suitable for modern footwear production
₹ 0.00 ₹ 0.00
Contact Us
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Interlining attachment is a critical process in footwear manufacturing, directly affecting component stability, shape retention, and overall product quality. The PR 1040 Rotary Fusing Machine provides a controlled environment for bonding thermo interlinings to leather and synthetic materials through the application of heat, pressure, and time.

The machine's rotary design allows one station to be loaded while the other is undergoing the fusing cycle, maximizing operator efficiency and reducing idle time. Adjustable process parameters ensure compatibility with a wide range of materials, while the Teflon-covered mould and felt-padded rotating table provide consistent heat distribution and protection for delicate components. This combination of productivity and precision makes the PR 1040 an essential machine for footwear upper manufacturing.

  • Designed for attaching thermo interlinings to leather and synthetic components
  • Rotary table design for continuous workflow
  • Simultaneous loading and fusing operations
  • Adjustable temperature control
  • Adjustable pressure settings
  • Variable dwell time control
  • Felt-covered rotating table
  • Teflon-coated aluminium mould
  • Consistent heat distribution
  • Compact and operator-friendly design
  • Safe and seamless operation
  • Heavy-duty industrial construction
ParameterBenefit
Rotary Table DesignIncreases productivity through continuous operation
Simultaneous Loading & FusingReduces cycle time and improves efficiency
Adjustable Temperature ControlEnsures optimal bonding for various materials
Variable Pressure SettingsImproves interlining attachment quality
Adjustable Dwell TimeProvides flexibility for different applications
Teflon-Coated MouldPrevents material sticking and damage
Felt-Covered TableEnsures uniform support during fusing
Consistent Heat DistributionDelivers reliable bonding performance
Compact DesignSaves factory floor space
Industrial ConstructionProvides long-term durability and reliability
ParameterDetails
ModelPR 1040
Voltage240 V AC
Power1.5 kW
Air Pressure6 Bar
Machine Weight100 kg
Gross Weight150 kg
Machine Dimensions1000 × 745 × 1350 mm
Packing Dimensions1150 × 895 × 1500 mm

The Rotary Fusing Machine is commonly used for:

  • Footwear upper manufacturing
  • Thermo interlining attachment
  • Leather footwear production
  • Safety shoe manufacturing
  • Sports shoe manufacturing
  • Casual footwear production
  • Formal footwear manufacturing
  • Synthetic footwear production
  • Leather goods manufacturing
  • Handbag manufacturing
  • Component reinforcement applications
  • Upper preparation departments

Consistent interlining attachment is essential for achieving superior footwear quality and long-term product durability. The PR 1040 Rotary Fusing Machine combines precision heat control, adjustable pressure, and a productivity-enhancing rotary design to deliver reliable and repeatable fusing results.

Its ability to perform loading and fusing simultaneously helps manufacturers improve throughput while maintaining consistent quality standards. With user-friendly controls, durable construction, and versatile processing capabilities, the PR 1040 is an ideal solution for footwear manufacturers seeking greater efficiency, improved bonding performance, and enhanced product quality.
