Reverse (or) Roller Cutting

Reverse (or) Roller Cutting

The Reverse Roller Cutting Machine Series cuts and re-cuts leather components using wooden dies, ensuring accurate cutting, reduced wastage and consistent production quality.

  • It cuts and re-cuts leather products using wooden dies.
  • It is suitable for shoe uppers, bags, wallets, belts, straps and leather components.
  • It uses a precision roller system for uniform cutting pressure.
  • It helps reduce material wastage and improve cutting accuracy.
  • It is available in 500 mm and 1000 mm roller width options.
  • It features adjustable roller gaps, variable conveyor speed and PLC-controlled operation.
₹ 0.00 ₹ 0.00
  • Machine type
Contact Us
Machine type PR 1432/1M, PR 1432/0.5m

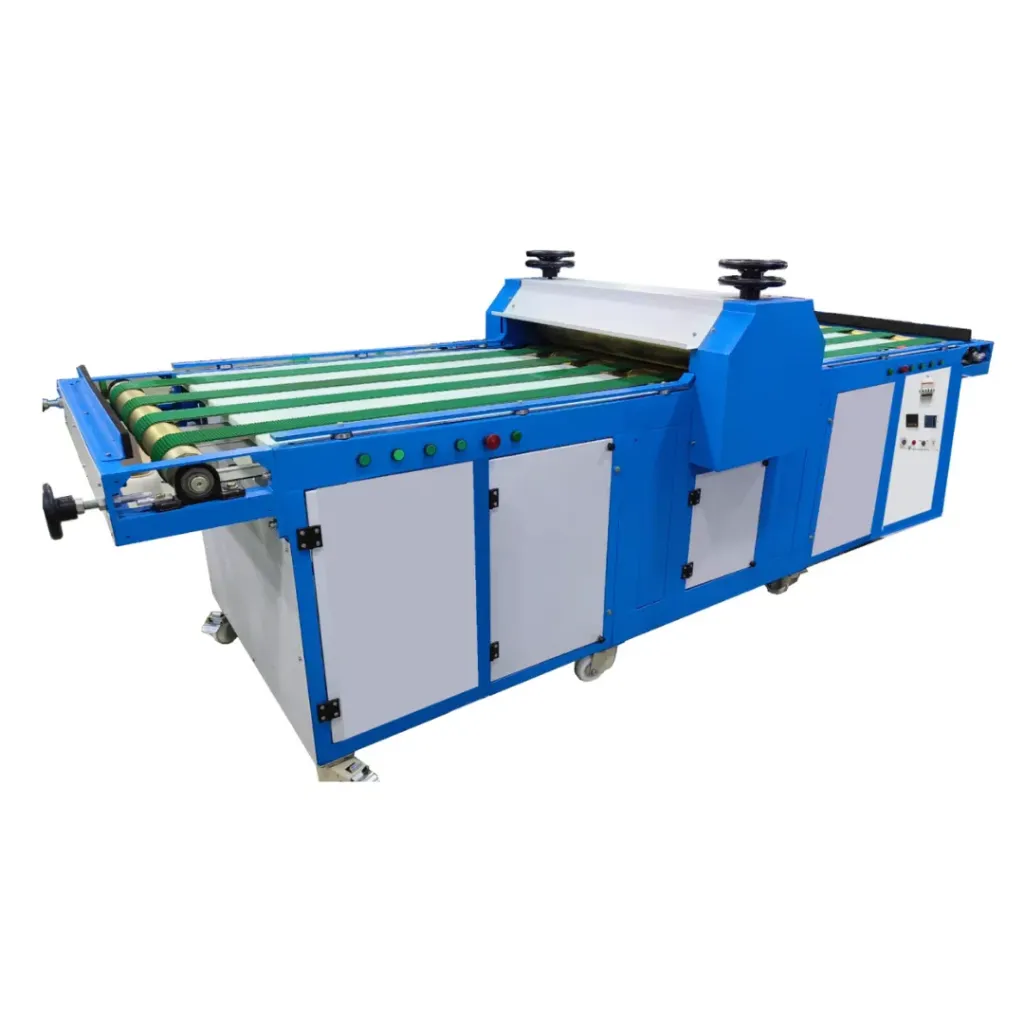

WPrecision cutting is one of the most critical processes in leather goods and footwear manufacturing, directly affecting product quality, material utilization and production efficiency. The PR 1432 Reverse Roller Cutting Machine Series is specifically engineered to cut and re-cut leather products such as uppers, bags, wallets, belts, straps and other components using wooden dies with high accuracy and consistency.

The machine employs a roller-based cutting system that applies uniform pressure across the material surface, ensuring clean and repeatable cuts while minimizing material wastage. Equipped with PLC controls, adjustable roller gaps and variable conveyor speed through a VFD system, the machine can be easily adapted to different material thicknesses and production requirements. Available in 500 mm and 1000 mm roller width configurations, the PR 1432 series offers flexibility for both small-scale and high-volume production environments.

  • Specially designed for cutting and re-cutting leather products
  • Suitable for uppers, bags, wallets, belts, straps and leather components
  • Compatible with wooden die cutting applications
  • PLC-controlled operation
  • Adjustable roller gap
  • Top roller available in metal or rubber configuration
  • Heavy-duty motor with gear assembly
  • Variable conveyor speed through VFD
  • Emergency stop system
  • Conveyor control buttons on multiple sides
  • Rotatable wheels for easy movement and positioning
  • Continuous production capability
  • High cutting accuracy and consistency
  • Durable industrial construction
  • User-friendly operation
  • Low maintenance design
FeatureBenefit
PLC Control SystemProvides precise machine operation and process control
Adjustable Roller GapAccommodates different material thicknesses
Variable Conveyor SpeedOptimizes cutting quality and productivity
Heavy-Duty Drive SystemEnsures reliable continuous operation
Metal/Rubber Roller OptionsSupports different material and cutting requirements
Multi-Side Control AccessImproves operator convenience and workflow
Emergency Stop FunctionEnhances operator safety
Rotatable WheelsSimplifies machine relocation and maintenance
Roller Cutting TechnologyDelivers uniform cutting pressure and accuracy
Continuous Production DesignImproves throughput and operational efficiency
SpecificationPR 1432/1MPR 1432/0.5M
ApplicationLeather Product Cutting & Re-CuttingLeather Product Cutting & Re-Cutting
Roller Width1000 mm500 mm
Control SystemPLC ControlledPLC Controlled
Conveyor ControlFour-Side Push Button ControlBoth-Side Push Button Control
Emergency StopAvailableAvailable
Roller GapAdjustableAdjustable
Top Roller TypeMetal or RubberMetal or Rubber
Drive SystemHeavy-Duty Motor with Gear AssemblyHeavy-Duty Motor with Gear Assembly
Conveyor Speed ControlVariable Frequency Drive (VFD)Variable Frequency Drive (VFD)
MobilityRotatable WheelsRotatable Wheels
Voltage415V AC415V AC
Power1.5 kW0.76 kW
Machine Weight400 kg200 kg
Gross Weight550 kg350 kg
Dimensions (L × W × H)1235 × 3765 × 990 mm714 × 2000 × 1018 mm
Packing Dimensions (L × W × H)1385 × 3915 × 1140 mm864 × 2150 × 1168 mm
  • Leather upper cutting
  • Leather bag component cutting
  • Wallet component cutting
  • Belt cutting and trimming
  • Strap cutting operations
  • Wooden die cutting
  • Leather goods manufacturing
  • Footwear component production
  • Fashion accessory manufacturing
  • Re-cutting and finishing operations

The PR 1432 Reverse Roller Cutting Machine Series is designed to deliver fast, accurate and repeatable cutting results for a wide range of leather products. Available in 1000 mm (1M) and 500 mm (0.5M) roller width configurations, the machines provide flexibility for both high-volume production and specialized cutting applications. With PLC control, adjustable roller settings, VFD-driven conveyor systems and robust industrial construction, the PR 1432 series helps manufacturers improve productivity, reduce material wastage and achieve superior cutting quality.


Specifications

Machine type PR 1432/1M, PR 1432/0.5m
