Counter Moulding Machine

The Chiller is used to provide fast and consistent cooling for footwear manufacturing processes, helping maintain stable production performance.

• It is designed for industrial cooling in footwear production.

• It delivers rapid and consistent cooling during operation.

• The dual expansion valve and turbo heat exchanger improve cooling efficiency.

• PLC-based controls help maintain precise and stable performance.

• R407C refrigerant and thermal insulation support energy-efficient operation.

• Its compact design fits easily into conveyor and ring system production lines.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

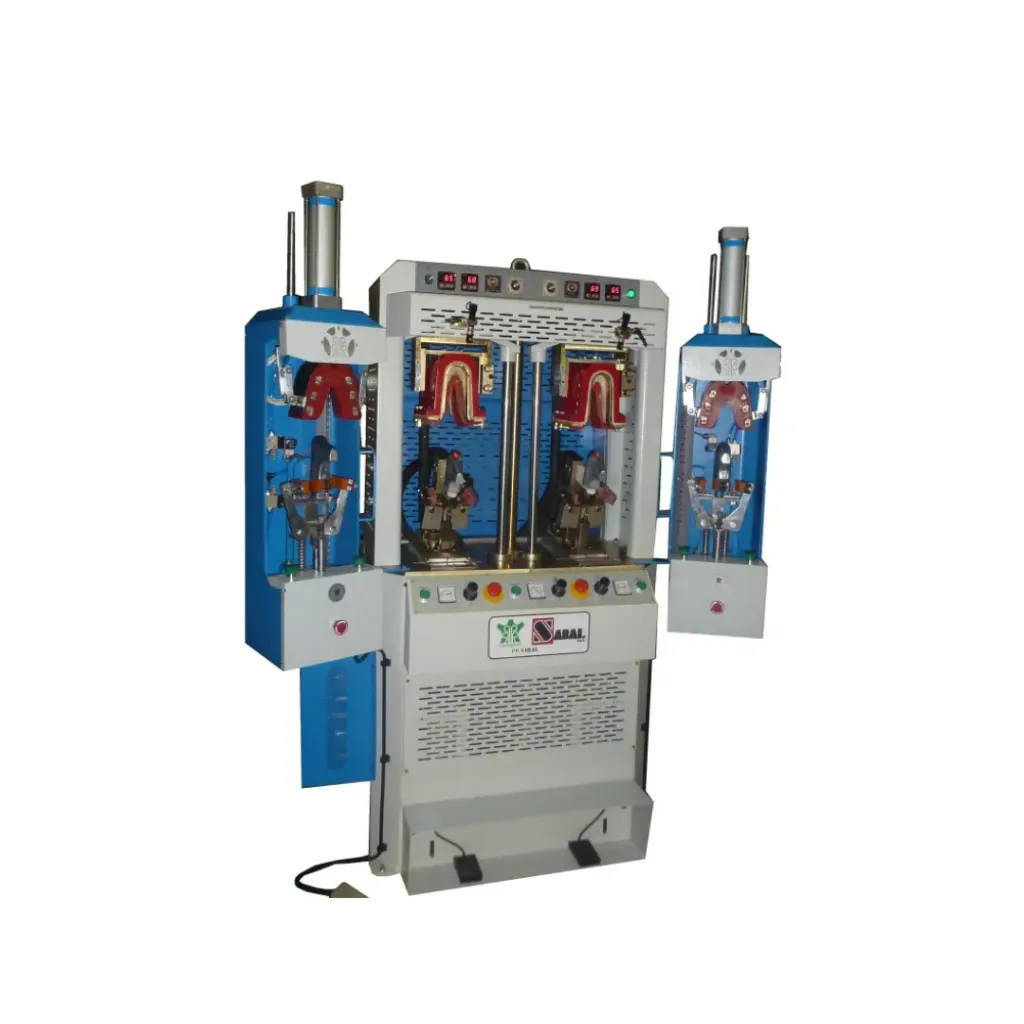

The heel counter is one of the most important structural components of footwear, providing stability, shape retention, and comfort. The PR 1440 Counter Moulding Machine is specifically engineered to mould and shape the back part of the shoe upper using a combination of heat, pressure, and cooling.

The machine incorporates separate heating and cooling stations, allowing the upper material to be softened, formed, and stabilized efficiently. Adjustable pull-down grip jaws and wiper mechanisms ensure precise positioning and shaping of the upper around the mould.

A PLC-based control system enables accurate regulation of moulding parameters, while rapid cooling technology helps maintain production speed and consistency. The result is a perfectly formed heel counter that improves footwear appearance, fit, and durability.

Back part moulding machine with integrated wipers
Separate heating and cooling stations
Fast cooling system for improved productivity
Adjustable pull-down grip jaw system
PLC-controlled operation
Electronically controlled heating system
Heating temperature up to 150°C
Quick mould and tooling change system
Tilting mould for easy operation
Clear operator visibility during loading
Air-bag type mould compatibility
Suitable for silicon mould applications
Heavy-duty industrial construction

Feature	Benefit
Heating & Cooling Stations	Ensures accurate moulding and shape retention
PLC Control System	Provides consistent and repeatable production results
Adjustable Grip Jaw System	Improves upper positioning and moulding accuracy
Fast Cooling Technology	Reduces cycle times and increases productivity
High Heating Temperature	Suitable for various upper materials and constructions
Quick Tool Change System	Minimizes downtime during production changes
Tilting Mould Design	Simplifies loading and unloading operations
Clear Loading Visibility	Improves operator accuracy and safety
Air-Bag Mould System	Delivers uniform pressure distribution

Specification	Details
Model	PR 1440
Voltage	415 V AC
Power	2.4 kW
Air Requirement	6 Bar
Machine Weight	500 kg
Gross Weight	650 kg
Machine Dimensions (mm)	1778 × 913 × 1753
Packing Dimensions (mm)	1928 × 963 × 1903

The PR 1440 Counter Moulding Machine is ideal for:

Heel counter moulding
Back part shaping
Leather footwear manufacturing
Safety shoe production
Sports footwear manufacturing
Casual footwear production
Formal shoe manufacturing
Footwear assembly lines
Premium footwear production
High-volume footwear manufacturing facilities

The quality of the heel counter directly influences footwear comfort, appearance, and durability. The PR 1440 provides precise shaping through advanced heating, moulding, and cooling technology, ensuring consistent results across different footwear styles and production volumes.

Its PLC-controlled operation, rapid cooling system, and easy mould change capabilities help manufacturers improve productivity while maintaining high standards of quality and repeatability.
