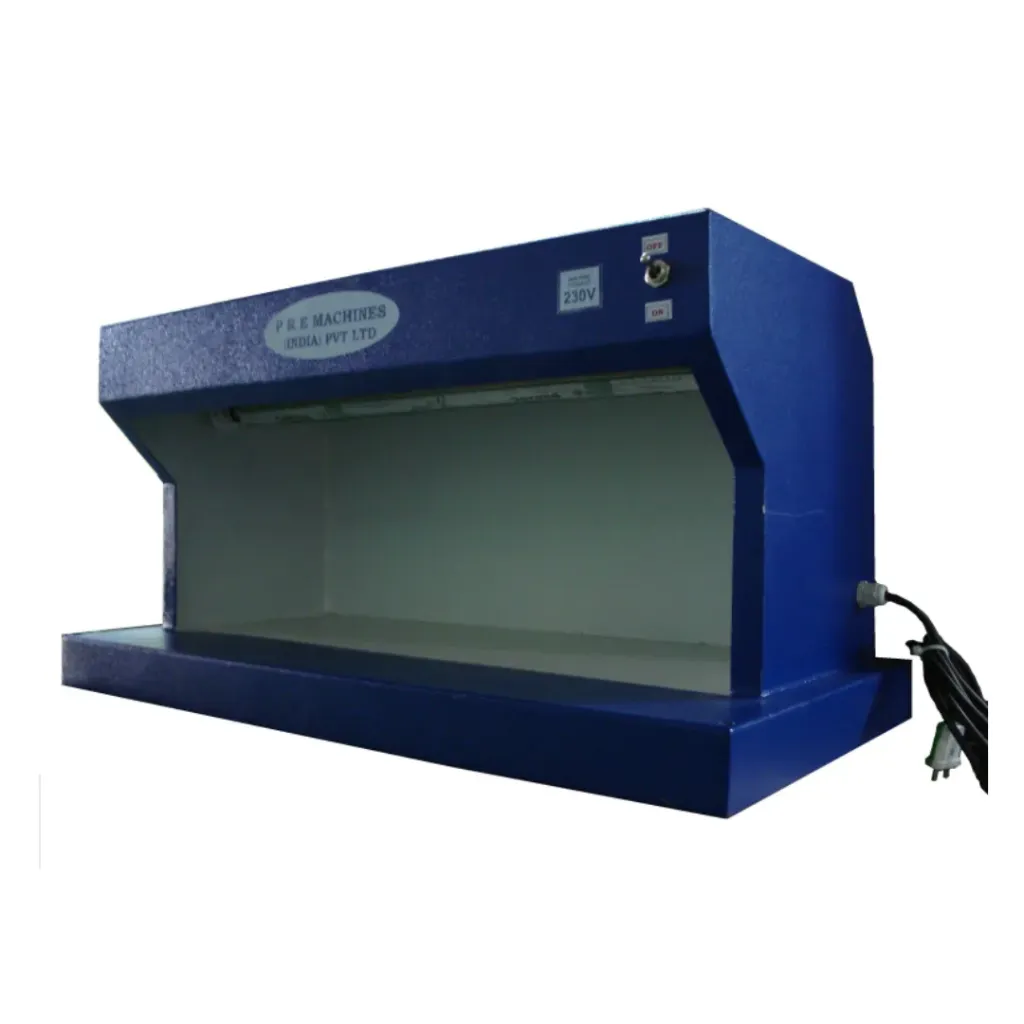

UV Lamp Box

The UV Lamp Box is used to inspect UV dye-mixed adhesives and halogenation solutions on soles before bonding, helping identify missed application areas.

• It is designed for adhesive and halogenation inspection in footwear manufacturing.
• It helps detect missed adhesive or incomplete treatment areas.
• UV light makes properly applied adhesive or solution clearly visible.
• It improves bonding consistency and product quality before assembly.
• The enclosed cabinet protects operators from direct UV exposure.
• Its compact design, low power use and easy operation support quality control.

Accurate adhesive application and proper halogenation treatment are critical for achieving strong sole bonding in footwear manufacturing. The UV Lamp Box provides a simple and effective quality inspection solution by highlighting treated and untreated areas under ultraviolet light.

The machine is commonly used in pasting and halogenation sections where UV dye is mixed with adhesive or treatment solutions. The enclosed cabinet design enhances operator safety while ensuring reliable inspection results. By identifying missed application areas before assembly, the UV Lamp Box helps reduce bonding failures, improve product quality and minimize rework.

UV light inspection system
Detects missing adhesive application areas
Detects incomplete halogenation treatment
Suitable for UV dye-mixed adhesives and solutions
Fully enclosed UV inspection cabinet
Safe operator-friendly design
Compact machine footprint
Low power consumption
Easy operation
Reliable quality control solution
Durable industrial construction
Suitable for continuous production environments

Feature	Benefit
UV Detection Technology	Identifies missed adhesive application areas instantly
Halogenation Inspection Capability	Ensures complete surface treatment coverage
Enclosed UV Cabinet	Enhances operator safety by containing UV exposure
Quality Control Process	Reduces bonding defects and rework
Compact Design	Requires minimal floor space
Low Power Consumption	Reduces operating costs
Fast Inspection Process	Improves production efficiency
Easy Operation	Minimizes operator training requirements
Improved Bonding Reliability	Enhances overall footwear quality
Durable Construction	Ensures long service life

Specification	UV Lamp Box
Machine Type	UV Inspection Cabinet
Application	Adhesive & Halogenation Inspection
Voltage	240V AC
Power	0.1 kW
Inspection Method	Ultraviolet Light Detection
Cabinet Type	Covered UV Light Cabinet
Adhesive Compatibility	UV Dye-Mixed Adhesives
Solution Compatibility	UV Dye-Mixed Halogenation Solutions
Industry	Footwear Manufacturing
Machine Weight	20 kg
Gross Weight	35 kg
Dimensions (L × W × H)	715 × 360 × 360 mm
Packing Dimensions (L × W × H)	865 × 510 × 510 mm

The UV Lamp Box is commonly used for:

Adhesive application inspection
Halogenation treatment verification
Sole preparation quality control
Bonding process inspection
Pasting section operations
Halogenation section operations
Footwear manufacturing plants
Leather footwear production
Sports shoe manufacturing
Quality assurance departments

Ensuring complete adhesive coverage and proper halogenation treatment is essential for achieving strong and reliable sole bonding. The UV Lamp Box provides a quick, safe and highly effective inspection method that helps manufacturers detect missed application areas before assembly. Its enclosed UV cabinet design, low energy consumption and simple operation make it an invaluable quality control tool for footwear manufacturers seeking improved product quality, reduced rework and enhanced production efficiency.
