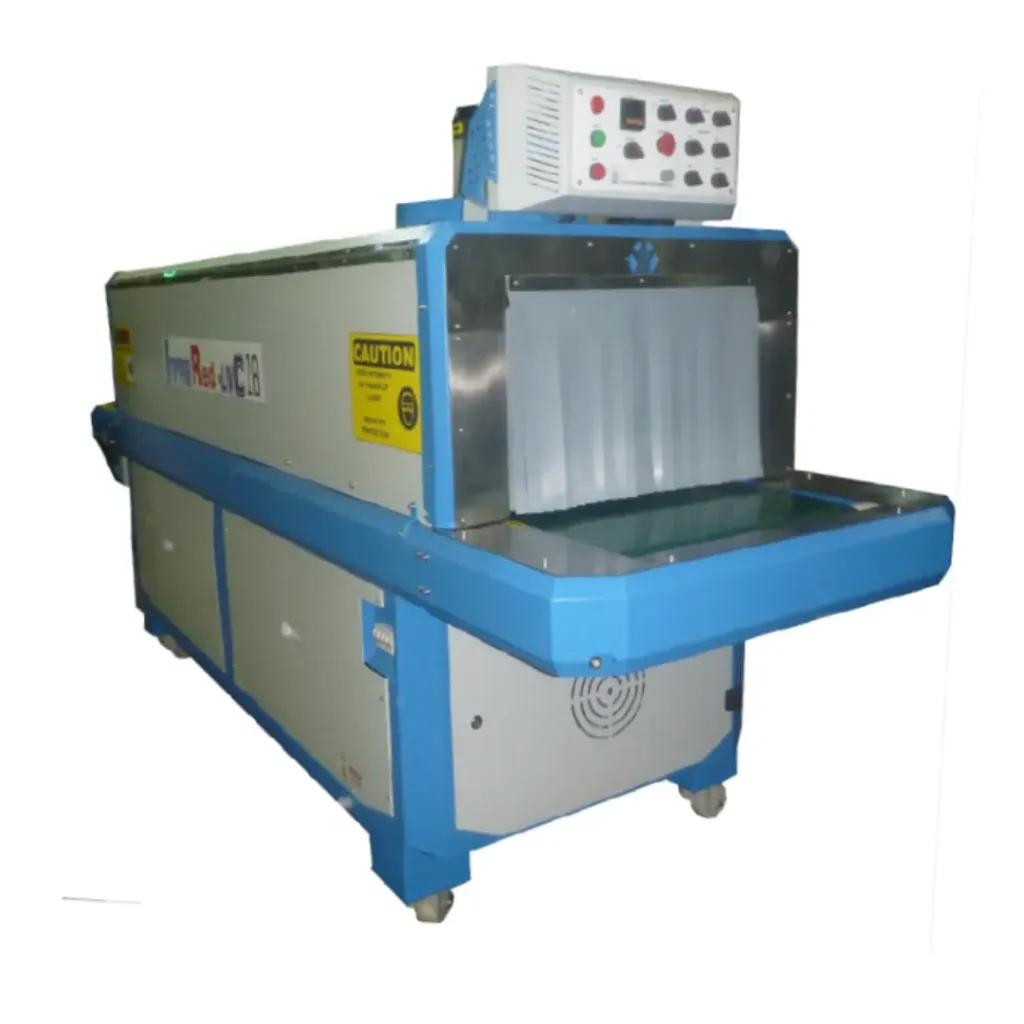

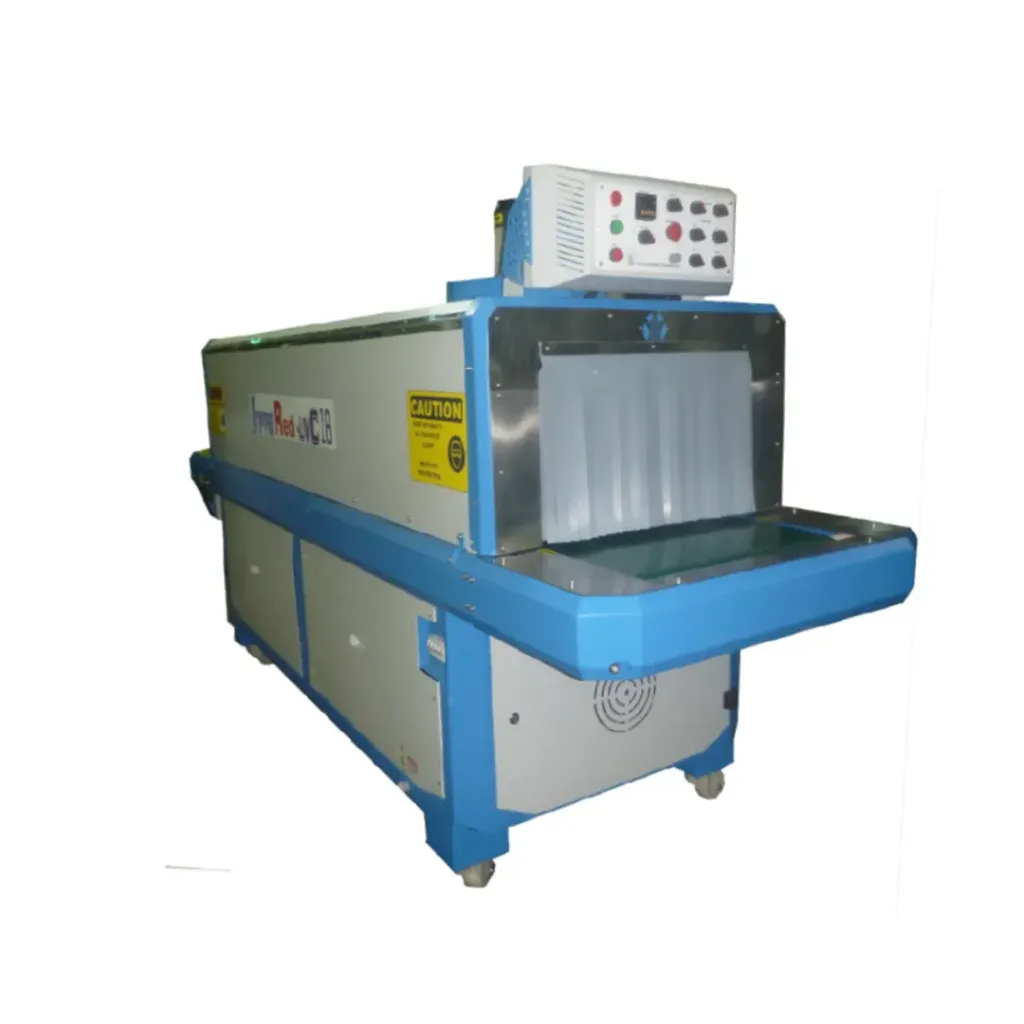

Anti-Fungal Machine

Anti-Fungal Machine

PR 1525

The Anti-Fungal Machine Series is used to remove moisture and protect finished footwear and leather goods from fungal growth before storage, packaging, or export.

  • • It is designed for anti-fungal treatment of shoes, bags, wallets, belts and leather goods.
  • • It removes excess moisture to improve product life and storage quality.
  • • Medium-wave infrared heating and forced air circulation support effective dehumidification.
  • • Imported UVC lamps help provide anti-fungal and microbial protection.
  • • PID temperature control ensures accurate and consistent process management.
  • • The advanced HMI model includes PLC control, fume extraction and UVC lamp life monitoring.
₹ 0.00 ₹ 0.00
  • Machine type
Contact Us
Machine type PR 1525, PR 1525-T-HMI

Moisture and fungal contamination can significantly affect the appearance, quality and lifespan of footwear and leather products. The PR 1525 series provides a controlled environment where products undergo dehumidification and anti-fungal treatment before dispatch or storage.

The machines combine infrared heating, forced air circulation and strategically positioned UVC lamps to ensure effective moisture removal and microbial control. While the standard PR 1525 offers adjustable conveyor speed through a VFD system, the PR 1525-T-HMI enhances functionality with an HMI-based PLC interface, fume extraction system and programmable operational settings. These features make the series highly suitable for modern footwear manufacturing facilities focused on quality assurance and export-ready production.

  • Designed for dehumidification and anti-fungal treatment
  • Suitable for shoes, bags, wallets, belts and leather goods
  • Medium-wave infrared heating technology
  • Forced blower air circulation system
  • Imported UVC disinfection lamps
  • PID temperature control system
  • Adjustable chamber temperature
  • UVC lamps positioned for maximum coverage
  • Continuous conveyor operation
  • Energy-efficient design
  • Industrial-grade construction
  • Available in standard and HMI-controlled versions
FeatureBenefit
Infrared Heating SystemProvides efficient moisture removal and drying
UVC Disinfection TechnologyEliminates fungal growth and microbial contamination
PID Temperature ControllerMaintains consistent treatment conditions
Forced Blower SystemEnsures uniform heat distribution
Large Processing ChamberSupports high-volume production
Conveyor-Based OperationEnables continuous processing
Dehumidification ProcessImproves product shelf life
Anti-Fungal TreatmentProtects products during storage and transport
Industrial ConstructionEnsures durability and long-term reliability
Advanced Automation (HMI Model)Simplifies operation and process monitoring
SpecificationPR 1525PR 1525-T-HMI
Voltage415V AC415V AC
Power5 kW5 kW
Belt Width600 mm800 mm
Process Chamber Length2100 mm2100 mm
Heating TechnologyMedium-Wave Infrared HeaterMedium-Wave Infrared Heater
Air CirculationForced Blower SystemForced Blower System
Temperature ControlPID Temperature ControllerPID Temperature Controller
Anti-Fungal SystemImported UVC LampsImported UVC Lamps
UVC Lamp PositionTop, Right & Left SideTop, Right & Left Side
Conveyor Speed ControlVariable Frequency Drive (VFD)PLC Controlled
HMI InterfaceNoYes
PLC ControlNoYes
Fume Suction SystemNoYes
UVC Lamp Life MonitoringNoYes
Machine Weight350 kg250 kg
Gross Weight450 kg350 kg
Dimensions (L × W × H)1000 × 2915 × 1691 mm1000 × 2365 × 870 mm
Packing Dimensions (L × W × H)1150 × 3065 × 1841 mm1150 × 2515 × 1020 mm

The Anti-Fungal Machine Series is commonly used for:

  • Finished shoe dehumidification
  • Anti-fungal treatment of footwear
  • Leather goods preservation
  • Bags and wallet treatment
  • Belt manufacturing facilities
  • Export preparation processes
  • Packaging line integration
  • Product quality enhancement
  • Storage protection treatment
  • Footwear and leather goods manufacturing plants

Maintaining moisture-free and fungus-resistant products is essential for preserving quality during storage, transportation and export. The PR 1525 Anti-Fungal Machine Series combines advanced infrared drying technology with powerful UVC sterilization to deliver reliable product protection. Whether selecting the standard PR 1525 or the advanced PR 1525-T-HMI with PLC and HMI controls, manufacturers benefit from improved product quality, enhanced durability, reduced fungal risks and efficient continuous production. The series provides a dependable solution for modern footwear and leather goods manufacturers focused on maintaining the highest quality standards.

Specifications

Machine type PR 1525, PR 1525-T-HMI
