Automatic Latex Spray

Automatic Latex Spray

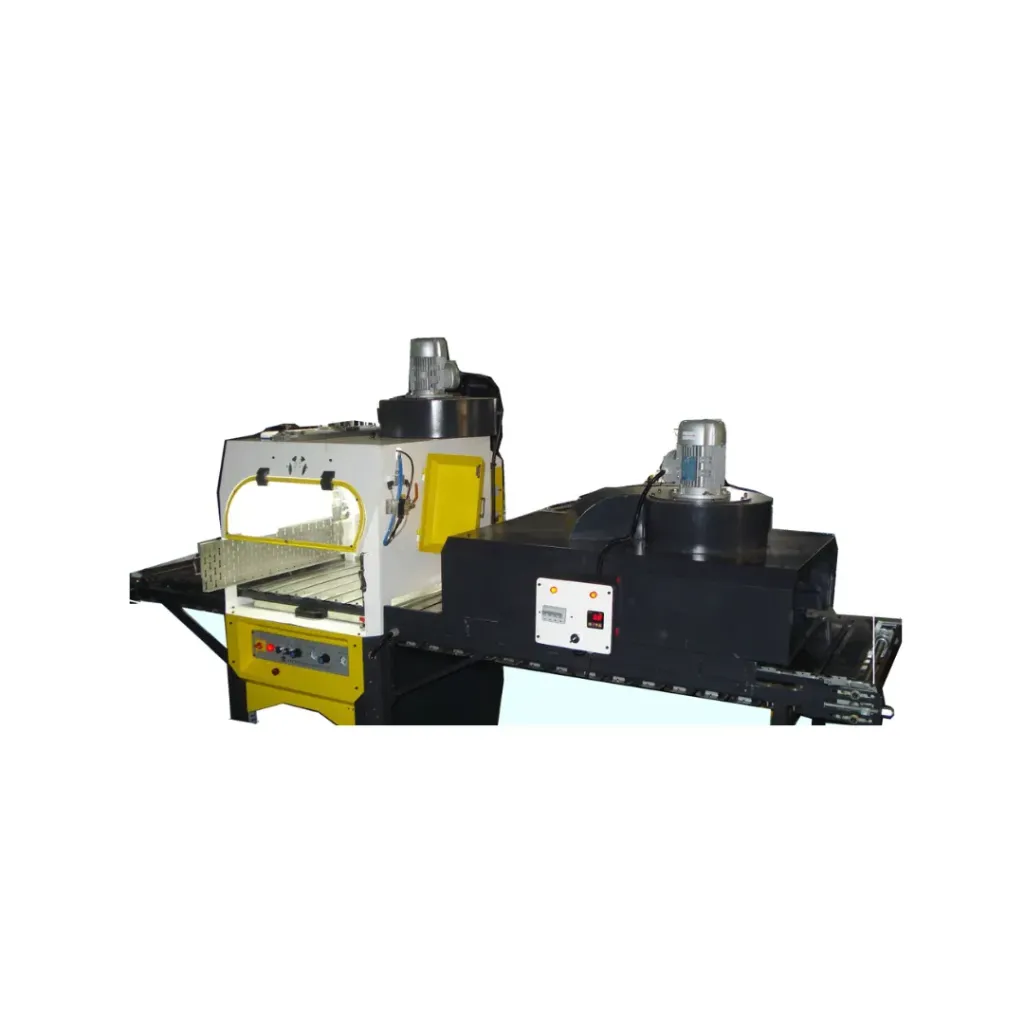

The PR G 1514 Automatic Latex Spray Machine is used for automatic latex adhesive spraying, drying, and fume control in leather goods production.

• It is designed for automatic latex spraying in leather goods manufacturing.

• It combines spraying, drying, fume extraction, and filtration in one unit.

• It uses a Japanese spray gun for uniform latex application.

• Its water-bed filtration system controls overspray and airborne particles.

• Infrared heating and forced-air drying help speed up adhesive curing.

• Its enclosed design improves operator safety and supports high-volume production.

₹ 0.00 ₹ 0.00
Contact Us
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Consistent adhesive application is critical for achieving strong bonding quality in leather goods manufacturing. The PR G 1514 Automatic Latex Spray Machine automates the spraying process while incorporating drying and filtration technologies to streamline production and improve product quality.

The machine features a stainless-steel plate conveyor system that transports products through the spraying and drying stages. Latex is delivered through a suspended spray gun system, while infrared heating and forced-air circulation ensure rapid drying. A water-bed filtration system and high-efficiency suction arrangement help maintain a cleaner workplace by capturing overspray and fumes. The result is improved adhesive utilization, enhanced operator safety, and increased production efficiency.

  • Fully enclosed automatic latex spraying system
  • High-quality Japanese spray gun
  • Stainless steel plate conveyor system
  • Three-sided suction with water-bed filtration
  • Integrated infrared drying system
  • Closed-loop forced-air dryer
  • Adjustable drying temperature
  • Dual tank arrangement for latex and water
  • Pressure tank with latex pouch connector
  • High-efficiency fume extraction system
  • Fine spray pattern width adjustment
  • Suspended spray gun mechanism
  • Operator protection from toxic fumes
  • User-friendly and eco-friendly operation
FeatureBenefit
Automatic Latex SprayingEnsures uniform adhesive application and improved consistency
Japanese Spray GunProvides high-quality and precise spray performance
Integrated Dryer SystemAccelerates drying and increases productivity
Infrared Heating TechnologyImproves adhesive curing efficiency
Three-Sided Suction SystemReduces overspray and airborne contamination
Water-Bed FiltrationEnhances workplace cleanliness and environmental safety
Enclosed Cabinet DesignProtects operators from fumes and exposure
Dual Tank ConfigurationSupports continuous and uninterrupted operation
Adjustable Spray PatternAccommodates different product sizes and requirements
High-Efficiency Extraction SystemImproves air quality and operator comfort
Stainless Steel ConveyorProvides durability and smooth product handling
Eco-Friendly DesignReduces waste and environmental impact
SpecificationPR G 1514
Machine TypeAutomatic Latex Spray Machine
ApplicationLatex Adhesive Spraying & Drying
Voltage415V AC
Power5.5 kW
Air Pressure6 Bar
Spray SystemAutomatic Japanese Spray Gun
Conveyor TypeStainless Steel Plate Conveyor
Drying SystemInfrared Heater with Closed-Loop Forced Dryer
Temperature ControlAdjustable
Filtration SystemWater-Bed Filtration
Suction SystemThree-Sided High-Efficiency Suction
Tank ConfigurationDual Tanks for Water & Latex
Spray Pattern ControlFine Width Adjustment
Gun MountingSuspended Spray Gun System
Safety FeatureFully Enclosed Operator Protection Cabinet
Machine Weight250 kg
Gross Weight325 kg
Dimensions (L × W × H)3660 × 1650 × 2090 mm
Packing Dimensions (L × W × H)3810 × 1800 × 2240 mm

The PR G 1514 Automatic Latex Spray Machine is commonly used for:

  • Leather goods manufacturing
  • Belt production
  • Wallet manufacturing
  • Handbag production
  • Small leather goods assembly
  • Latex adhesive application
  • Bonding preparation processes
  • Industrial adhesive coating operations
  • High-volume leather goods production
  • Automated adhesive application lines

The PR G 1514 Automatic Latex Spray Machine combines adhesive application, drying, and fume extraction into a single automated solution, helping manufacturers improve productivity, adhesive consistency, and workplace safety. Its advanced Japanese spray gun technology, integrated infrared drying system, and efficient water-bed filtration ensure superior bonding quality while minimizing waste and operator exposure. With robust industrial construction and user-friendly operation, the PR G 1514 is an ideal choice for leather goods manufacturers seeking reliable, high-performance adhesive spraying automation.
