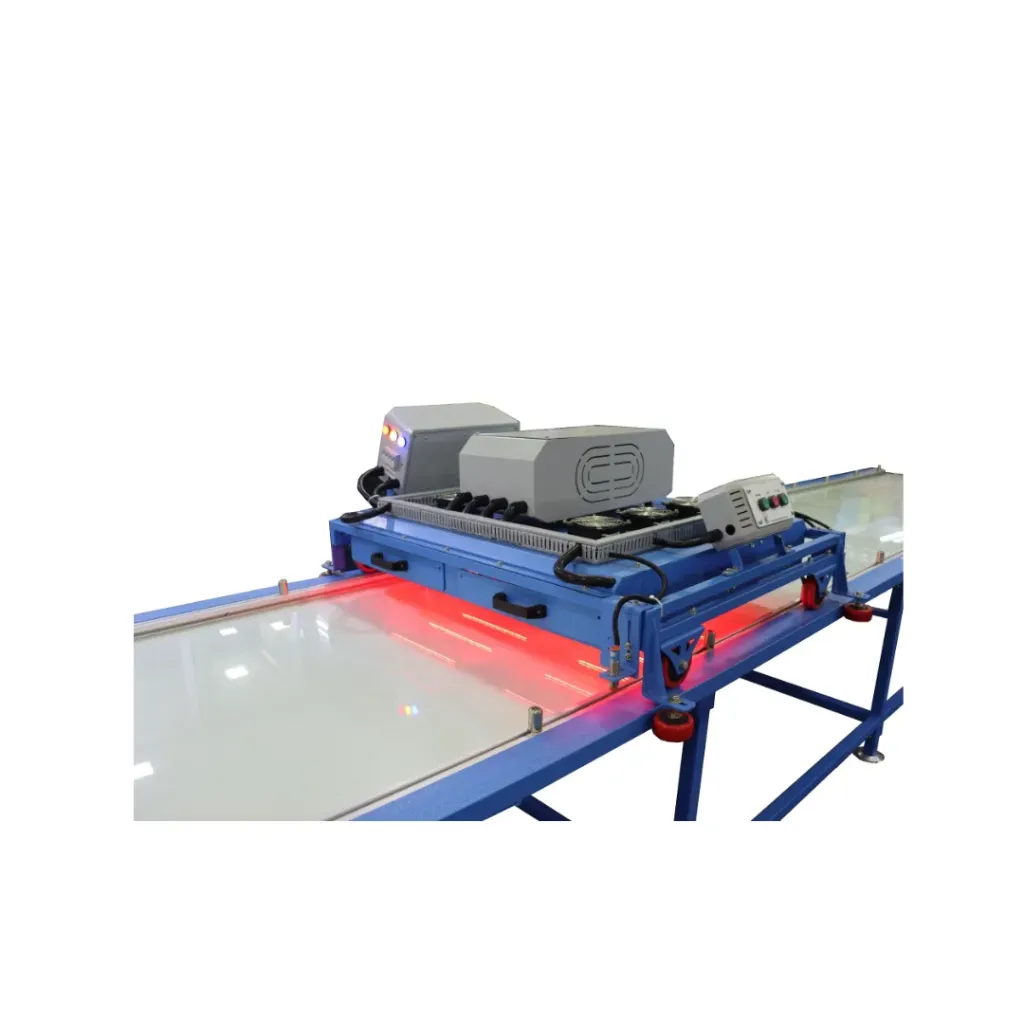

Screen Print Table With Drier

The PR SPTD01 Screen Print Table with Drier is used for printing logos, graphics, branding, and decorative designs on leather goods, footwear parts, and synthetic materials.

• It combines screen printing and infrared drying in one workstation.

• It is suitable for leather goods, footwear components, and synthetic products.

• The toughened glass table provides a stable and accurate printing surface.

• The automatic moving infrared drier ensures uniform drying of inks and coatings.

• Heater control, air circulation, and speed adjustment support precise drying.

• Its strong build and easy operation help improve printing quality and productivity.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Printing and decorative finishing are essential processes in leather goods and footwear manufacturing, requiring both precision and controlled drying. The PR SPTD01 Screen Print Table with Drier provides a complete solution by combining a stable printing table with an automated infrared drying system.

The machine utilizes a toughened glass platform that can be customized according to production requirements. The automatic infrared drier travels across the work area, ensuring uniform heat distribution and consistent drying of printed surfaces. Multiple safety and positioning systems, including station stopping sensors and end-position sensors, ensure reliable operation while reducing manual intervention. With adjustable drying speeds, independent heater controls, and forced air circulation, the machine supports a wide range of printing materials and production volumes.

Toughened glass printing table

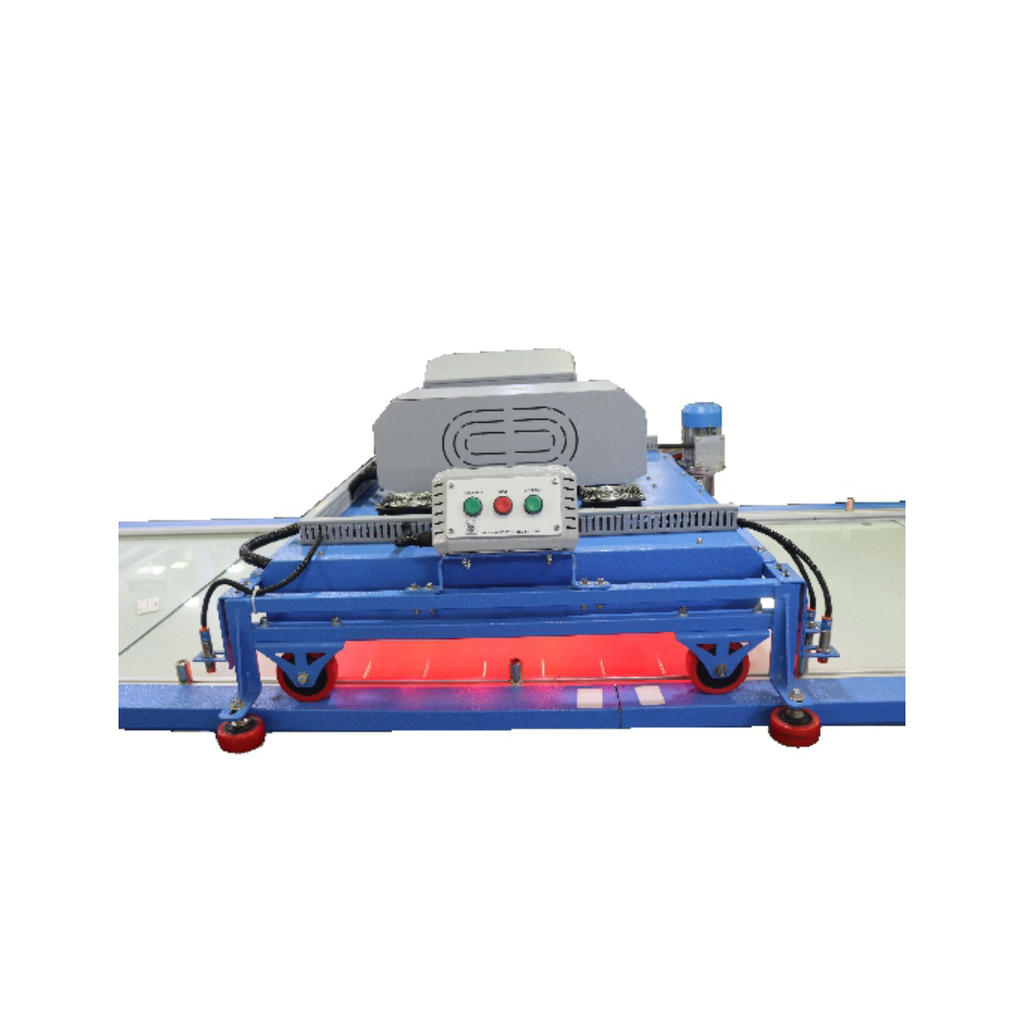

Automatic moving infrared drier
1000 mm table platform
Customizable table width and length
Glass platform supported by plywood base
Fixed positioning pins on both sides
Moveable infrared heater drier
Independent left and right heater controls
Direction-change control for drier movement
Side-mounted drier stop boxes
Forced air fan mounted on top of drier
Station stopping sensor system
End-position sensor

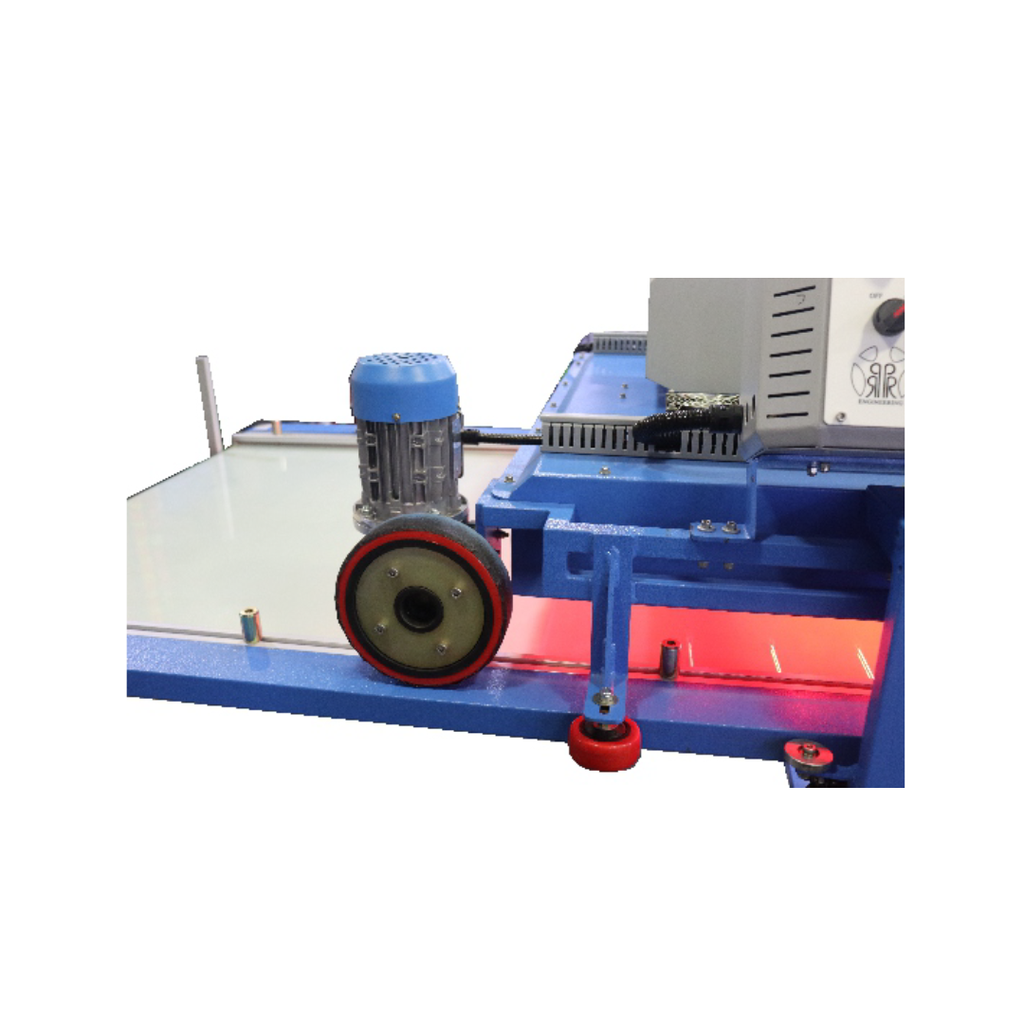

Heavy-duty motor with gear assembly
Variable drier movement speed
Continuous production capability
Industrial-grade construction

Feature	Benefit
Toughened Glass Printing Table	Provides a smooth and stable printing surface
Automatic Infrared Drier	Ensures consistent and uniform ink drying
Independent Heater Controls	Allows optimized drying based on application requirements
Variable Drier Speed	Improves drying efficiency and process flexibility
Forced Air Circulation	Enhances drying performance and uniformity
Positioning Pins	Improves printing alignment and repeatability
Automatic Sensors	Reduces operator intervention and improves reliability
Heavy-Duty Drive System	Supports continuous industrial operation
Adjustable Table Size	Accommodates different product dimensions
Integrated Printing & Drying Process	Increases productivity and reduces handling time

Specification	PR SPTD01
Machine Type	Screen Print Table with Drier
Application	Screen Printing & Ink Drying
Table Platform	Toughened Glass
Table Width	1000 mm
Table Length	Customizable
Table Support	Plywood Platform
Positioning System	Fixed Position Pins on Both Sides
Drier Type	Automatic Moving Infrared Drier
Heater Control	Independent Left & Right Heater ON/OFF Control
Air Circulation	Forced Air Fan Mounted on Drier
Sensor System	Station Stopping Sensor & End Position Sensor
Drive System	Heavy-Duty Motor with Gear Assembly
Drier Speed	Variable
Voltage	415V AC
Power	7 kW
Machine Weight	200 kg
Gross Weight	350 kg
Dimensions (L × W × H)	1400 × 10000 × 1500 mm
Packing Dimensions	As Per Configuration

The PR SPTD01 Screen Print Table with Drier is commonly used for:

Leather goods screen printing
Footwear upper printing
Logo printing on leather products
Branding and promotional graphics
Belt printing
Wallet printing
Bag printing
Synthetic material printing
Ink curing and drying applications
Decorative surface finishing operations

The PR SPTD01 Screen Print Table with Drier combines precision printing and controlled drying into a single integrated system, helping manufacturers improve productivity and print quality. Its automatic infrared drying technology, adjustable controls, forced air circulation, and intelligent sensor systems ensure consistent results across a wide range of applications. Designed for continuous industrial use, the machine provides an efficient and reliable solution for modern leather goods, footwear, and promotional product manufacturers seeking high-quality printing and finishing performance.
