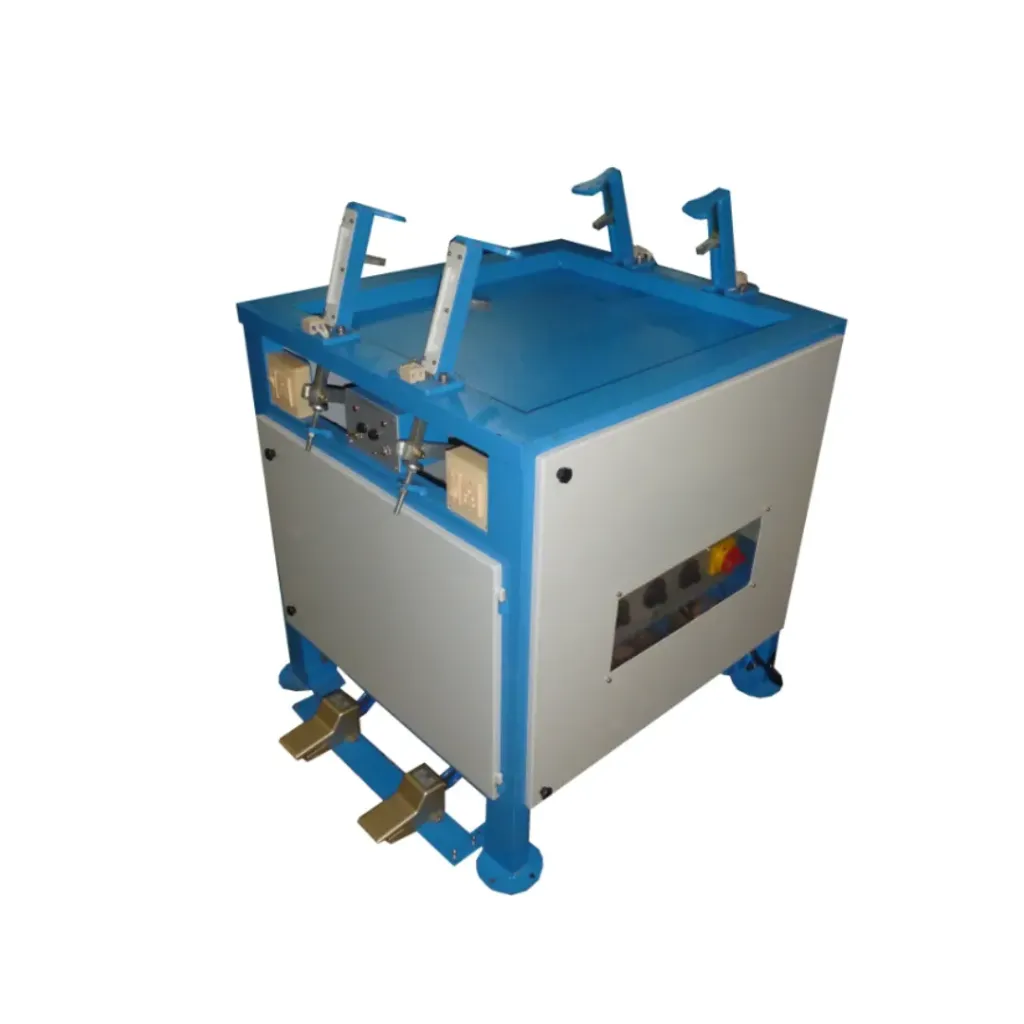

Preforming Machine

Preforming Machine

PR 1070

The Preforming Attaching Machine preforms, activates and bonds thermoplastic stiffeners to footwear uppers using controlled heat, moulding and pneumatic pressure.

  • It preforms and attaches thermoplastic stiffeners before lasting.
  • It uses controlled heat and pneumatic pressure for strong bonding.
  • It shapes flat stiffeners to match the footwear upper contour.
  • It improves reinforcement, shape retention and footwear quality.
  • Its rotary station system supports loading, heating, preforming and bonding.
  • It reduces manual handling and improves high-volume production consistency.
₹ 0.00 ₹ 0.00
  • Machine type
Contact Us
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Machine type PR 1070/4S, PR 1070/8S, PR 1070/12S, PR 1070/16S

Preforming thermoplastic stiffeners is a critical operation in footwear manufacturing, ensuring proper reinforcement, shape retention and structural support. The Preforming Machine is specifically developed to automate and optimize this process through an advanced station rotary configuration.

The machine heats and softens thermoplastic materials before moulding them into the required shape using precision-forming dies. The rotary workstation arrangement enables continuous operation and higher throughput compared to conventional preforming systems. By ensuring consistent stiffener geometry and reducing manual handling, this helps manufacturers achieve superior product quality and production efficiency.

  • Station rotary working system
  • Thermo-pneumatic operating technology
  • High-capacity production design
  • Precision stiffener preforming capability
  • Uniform heating system
  • Accurate moulding process
  • Continuous rotary workflow
  • Suitable for thermoplastic stiffener materials
  • Adjustable temperature settings
  • Fast production cycle
  • User-friendly controls
  • Heavy-duty industrial construction
ParameterBenefit
Station Rotary DesignMaximizes production capacity and efficiency
Continuous WorkflowReduces idle time and increases throughput
Precision Preforming SystemProduces consistent stiffener shapes
Thermo-Pneumatic OperationEnsures reliable heat and pressure control
Uniform HeatingProvides consistent material activation
Accurate MouldingImproves reinforcement quality
Reduced Manual HandlingEnhances operator productivity
Consistent Production ResultsMinimizes rejection and rework
High-Speed OperationSupports large-scale manufacturing
Industrial ConstructionEnsures long-term durability and reliability
SpecificationPR 1070/4SPR 1070/8SPR 1070/12SPR 1070/16S
ModelPR 1070/4SPR 1070/8SPR 1070/12SPR 1070/16S
Machine TypePreforming MachinePreforming MachinePreforming MachinePreforming Machine
Voltage415V AC415V AC415V AC415V AC
Power0.6 kW1.2 kW1.8 kW2.4 kW
Air Pressure6 Bar6 Bar6 Bar6 Bar
Machine Weight110 Kg180 Kg210 Kg270 Kg
Gross Weight150 Kg215 Kg260 Kg320 Kg
Machine Dimensions (L × W × H)860 × 1060 × 1140 mm1460 × 1000 × 1140 mm2053 × 1000 × 1140 mm2650 × 1000 × 1140 mm
Packing Dimensions (L × W × H)1010 × 1150 × 1290 mm1610 × 1150 × 1290 mm1203 × 1150 × 1290 mm*2800 × 1150 × 1290 mm

The Preforming Machine is commonly used for:

  • Thermoplastic stiffner preforming
  • Heel counter preforming
  • Toe puff preforming
  • Footwear reinforcement manufacturing
  • Formal footwear production
  • Safety shoe manufacturing
  • Sports shoe production
  • Casual footwear manufacturing
  • Leather footwear production
  • Upper preparation departments
  • Lasting preparation operations
  • High-volume footwear manufacturing

Large-scale footwear production requires equipment capable of delivering exceptional output without compromising precision and consistency. The Preforming Machine meets these demands through its advanced 16-station rotary design, enabling continuous high-speed production while maintaining accurate component shaping.

Its thermo-pneumatic technology, precision moulding capability and ultra-high-capacity workflow help manufacturers improve reinforcement quality, reduce cycle times and maximize production efficiency. For footwear manufacturers seeking superior throughput, dependable performance and long-term operational reliability, this represents an ideal solution for modern preforming operations.

Specifications

Machine type PR 1070/4S, PR 1070/8S, PR 1070/12S, PR 1070/16S
