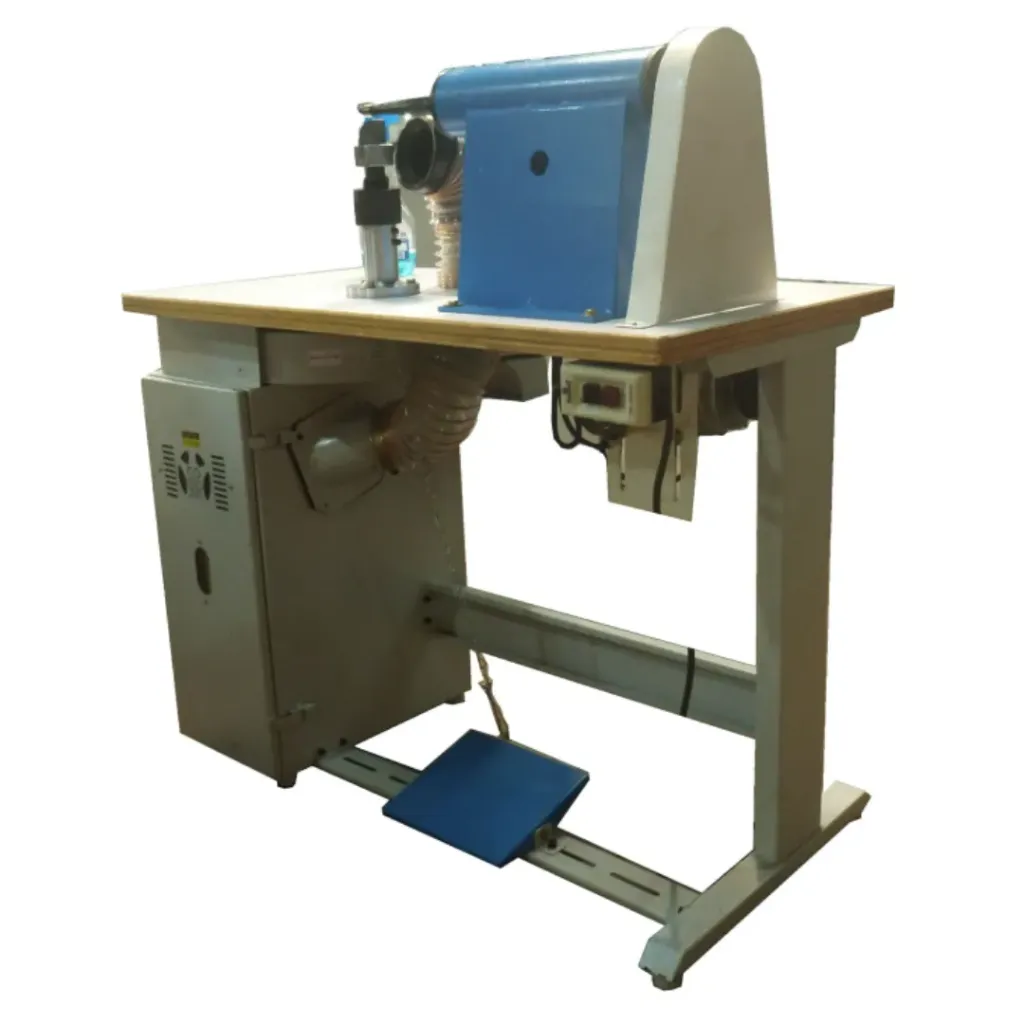

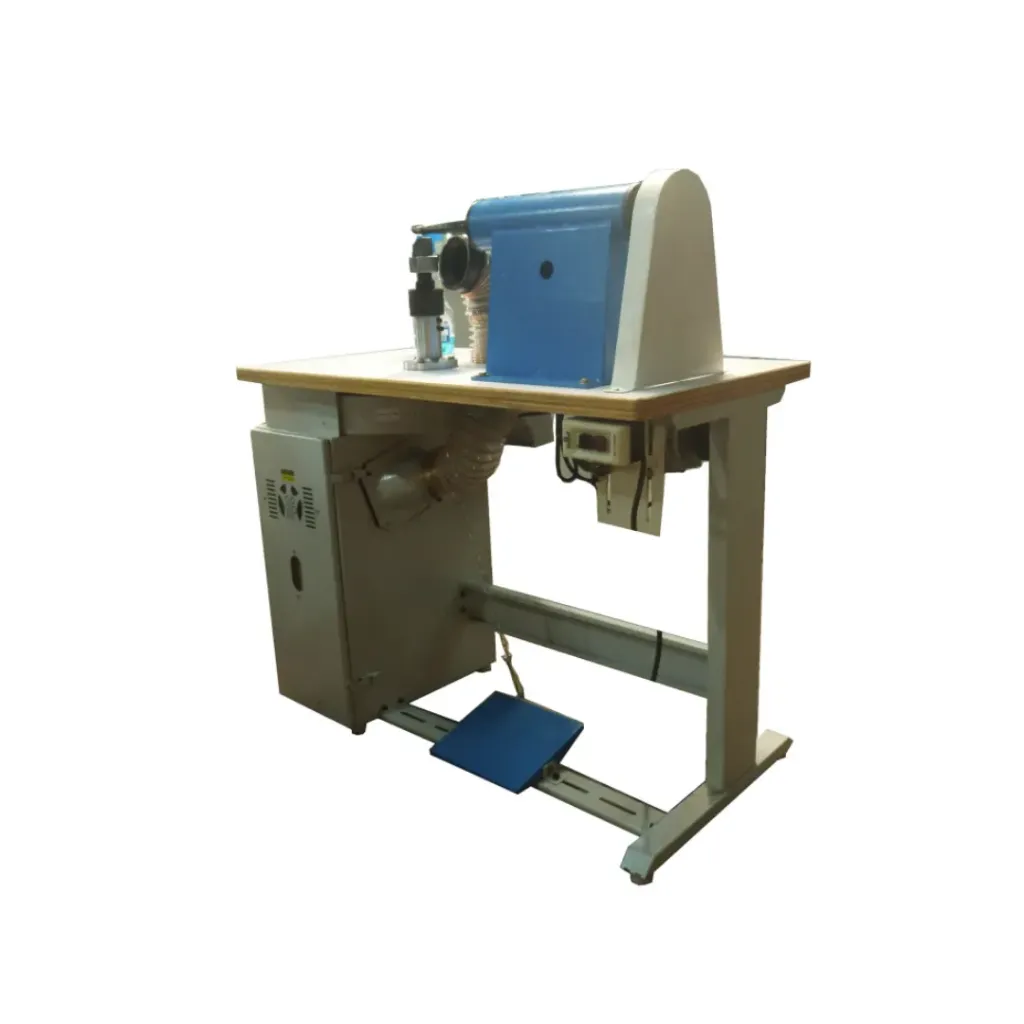

Seam Rubbing Machine

Seam Rubbing Machine

PR 1510

The Seam Rubbing Machine smoothens and flattens stitched seams after seam tape attachment, improving upper appearance, comfort and finishing quality.

  • Designed for upper finishing after seam tape attachment in footwear manufacturing
  • Applies controlled rubbing pressure along the stitched seam line for uniform flattening
  • Reduces seam bulk and creates a cleaner, smoother upper surface
  • Improves footwear aesthetics, wearer comfort and overall product quality
  • Adjustable seam gap mechanism supports accurate operation for different seam types
  • Integrated dust collection with independent cutter and suction drives improves cleanliness, efficiency and operator convenience
₹ 0.00 ₹ 0.00
  • Machine type
Contact Us
Machine type PR 1510, PR 1510/DR

Seam finishing is an important stage in footwear upper manufacturing. After stitching and seam tape application, uneven seam thickness and raised stitching areas can negatively affect product appearance and comfort.

The  Seam Rubbing Machine addresses this challenge by applying controlled rubbing pressure to flatten and smooth seam areas. The machine is particularly effective for uppers where seam tapes have been attached and a uniform finish is required before lasting or final assembly.

Its adjustable rubbing system allows manufacturers to process different seam thicknesses and material types while maintaining consistent quality. The integrated dust extraction system keeps the work area clean and improves operational efficiency.

  • Designed for seam rubbing and flattening
  • Suitable for uppers after seam tape attachment
  • Double roller rubbing system
  • Adjustable seam gap setting
  • Precision seam finishing
  • Integrated dust collection system
  • Independent cutter drive
  • Independent suction system
  • Smooth feeding operation
  • Improved upper appearance
  • Heavy-duty industrial construction
  • User-friendly operation
FeatureBenefit
Seam Rubbing TechnologyCreates smooth and uniform seam finishes
Adjustable Seam GapAccommodates different seam thicknesses
Double Roller SystemEnsures consistent rubbing performance
Dust Collection SystemMaintains a cleaner work environment
Independent Suction DriveImproves debris removal efficiency
Enhanced Seam AppearanceImproves overall product aesthetics
Reduced Seam BulkEnhances wearer comfort
Industrial ConstructionEnsures reliable long-term operation
ParameterPR 1510PR 1510/DR
ModelPR 1510PR 1510/DR
Voltage415 V AC415 V AC
Power0.57 kW0.80 kW
Machine Weight100 kg100 kg
Gross Weight160 kg160 kg
Machine Dimensions1190 × 600 × 1070 mm1190 × 600 × 1070 mm
Packing Dimensions1340 × 750 × 1220 mm1340 × 750 × 1220 mm
Suction SystemIntegrated Dust Extraction SystemIntegrated Dust Extraction System
Gap AdjustmentAdjustable According to Seam ThicknessAdjustable According to Seam Thickness
Dust Collection TankRemovableRemovable
Motor ConfigurationIndividual Motors for Cutter & Suction SystemIndividual Motors for Cutter & Suction System
Feeding SystemStandard Feeding SystemDouble Roller Feeding System
Special FeatureSeam Rubbing Before Seam Tape AttachmentDouble Roller System for Efficient Feeding & Easy Handling
ApplicationSeam Rubbing Before Seam Tape AttachmentSeam Rubbing Before Seam Tape Attachment

The  Seam Rubbing Machine is ideal for:

  • Seam flattening operations
  • Upper finishing processes
  • Seam tape finishing
  • Leather footwear manufacturing
  • Synthetic footwear production
  • Sports footwear manufacturing
  • Casual footwear production
  • Formal shoe manufacturing
  • Safety footwear production
  • Upper preparation departments

Smooth and uniform seams are essential for premium footwear quality. The PR 1510/DR helps manufacturers achieve professional seam finishes by reducing seam bulk and improving upper appearance. Its adjustable settings allow processing of different materials and seam constructions while maintaining consistent production standards.

With integrated dust extraction and precision seam finishing capabilities, the machine helps improve both productivity and product quality throughout upper manufacturing operations.

Specifications

Machine type PR 1510, PR 1510/DR
