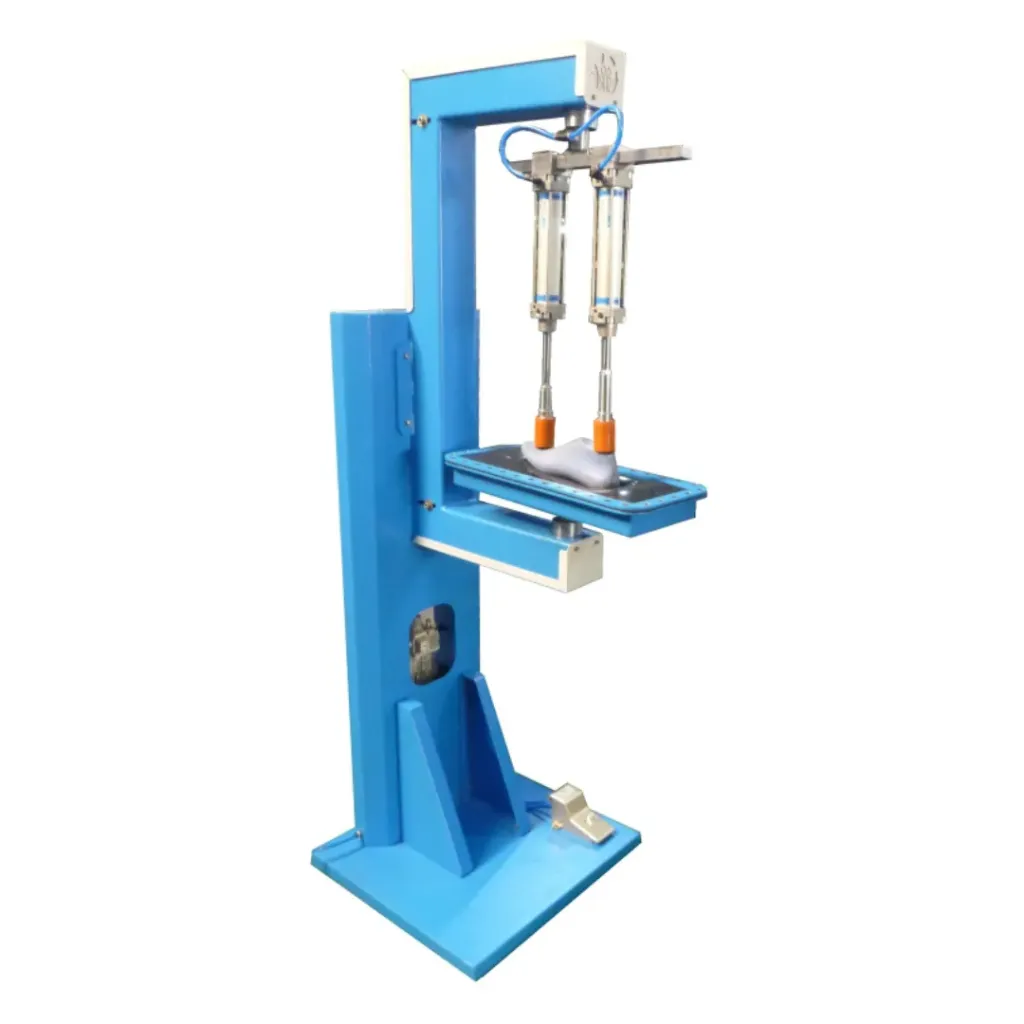

Sole Marking Machine

Sole Marking Machine

The  Sole Marking Machine is a specialized machine used in the bottoming section of footwear manufacturing to accurately mark the sole outline on lasted uppers before roughening and sole attachment operations. The machine helps operators identify the exact sole placement area, ensuring precision during cementing, roughening, and assembly processes. It is particularly suitable for cup sole footwear, sports shoes, safety shoes, casual shoes, and other footwear constructions requiring accurate sole alignment.

Designed for flexibility and ease of operation, the PR 1164/V is equipped with two adjustable pneumatic positioning holders that accommodate different last sizes and shapes. The machine is available with multiple bed configurations including Plain Bed, Air Bed, Water Bed, and Universal Bed to suit various footwear applications and customer requirements. Its robust construction and precise marking capability improve production accuracy, reduce assembly errors, and enhance overall footwear quality.

₹ 0.00 ₹ 0.00
  • Machine type
Contact Us
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Machine type PR 1164/V/ P or AB or WB, PR 1164/H/ P or AB

Accurate sole positioning is critical in footwear manufacturing to ensure proper bonding, alignment, and appearance. The PR 1164/V Sole Marking Machine provides a reliable solution for marking the exact sole profile on lasted uppers prior to roughening operations.

The machine uses pneumatic positioning holders to securely hold footwear lasts while allowing precise marking of sole outlines. Multiple bed configurations make the machine adaptable to various footwear styles and manufacturing requirements. By improving marking accuracy, the PR 1164/V helps reduce production defects and enhances assembly consistency.

  • Designed for sole shape marking on lasted uppers
  • Ideal for cup sole footwear production
  • Two adjustable pneumatic positioning holders
  • Accommodates different last sizes and shapes
  • Available with multiple bed options
  • Plain Bed (P)
  • Air Bed (AB)
  • Water Bed (WB)
  • Universal Bed (UB)
  • Accurate sole profile marking
  • Improves assembly precision
  • User-friendly operation
  • Heavy-duty industrial construction
ParameterBenefit
Accurate Sole MarkingImproves sole alignment during assembly
Pneumatic HoldersSecurely position various last sizes
Multiple Bed OptionsSuitable for different footwear applications
Improved Assembly AccuracyReduces bonding and alignment errors
Flexible OperationSupports multiple footwear styles
Enhanced ProductivitySpeeds up bottoming operations
Consistent ResultsImproves manufacturing quality
Reduced ReworkMinimizes production defects
Easy OperationSimplifies operator workflow
Durable ConstructionEnsures long-term reliability
ParameterPR 1164/H/P or ABPR 1164/V/P or AB or WB
ModelPR 1164/H/P, PR 1164/H/ABPR 1164/V/P, PR 1164/V/AB, PR 1164/V/WB
Machine TypeSole Marking MachineSole Marking Machine
ApplicationSole Shape Marking on Lasted UppersSole Shape Marking on Lasted Uppers
Positioning SystemDual Adjustable Pneumatic HoldersDual Adjustable Pneumatic Holders
Bed OptionsPlain Bed (P), Air Bed (AB)Plain Bed (P), Air Bed (AB), Water Bed (WB)
Bed Size185 × 340 mm185 × 340 mm
Voltage415 V AC415 V AC
Power1.1 kW1.1 kW
Machine Weight250 kg250 kg
Gross Weight400 kg400 kg
Machine Dimensions915 × 715 × 1375 mm915 × 715 × 1375 mm
Packing Dimensions1065 × 865 × 1525 mm1065 × 865 × 1525 mm
ConstructionHeavy-Duty Industrial FrameHeavy-Duty Industrial Frame
Special FeatureHigh-Speed Hammering & Feather Edge PreparationHigh-Speed Hammering & Feather Edge Preparation
Application AreaBottoming Section Before RougheningBottoming Section Before Roughening
  • Cup sole footwear manufacturing
  • Sports shoe production
  • Casual shoe manufacturing
  • Safety shoe production
  • Leather footwear manufacturing
  • Sole marking before roughening
  • Bottoming department operations
  • Sole alignment verification
  • Footwear assembly lines
  • High-volume footwear production



Accurate sole marking is essential for achieving precise sole attachment and consistent footwear quality. The PR 1164/V Sole Marking Machine provides manufacturers with a reliable solution for marking sole outlines quickly and accurately on lasted uppers.

Its adjustable pneumatic holding system, multiple bed configurations, and durable construction make it suitable for a wide range of footwear applications. By improving alignment accuracy and reducing assembly errors, the PR 1164/V helps manufacturers enhance product quality and production efficiency.

Specifications

Machine type PR 1164/V/ P or AB or WB, PR 1164/H/ P or AB
