Spray Booth with Drier Conveyor

Spray Booth with Drier Conveyor

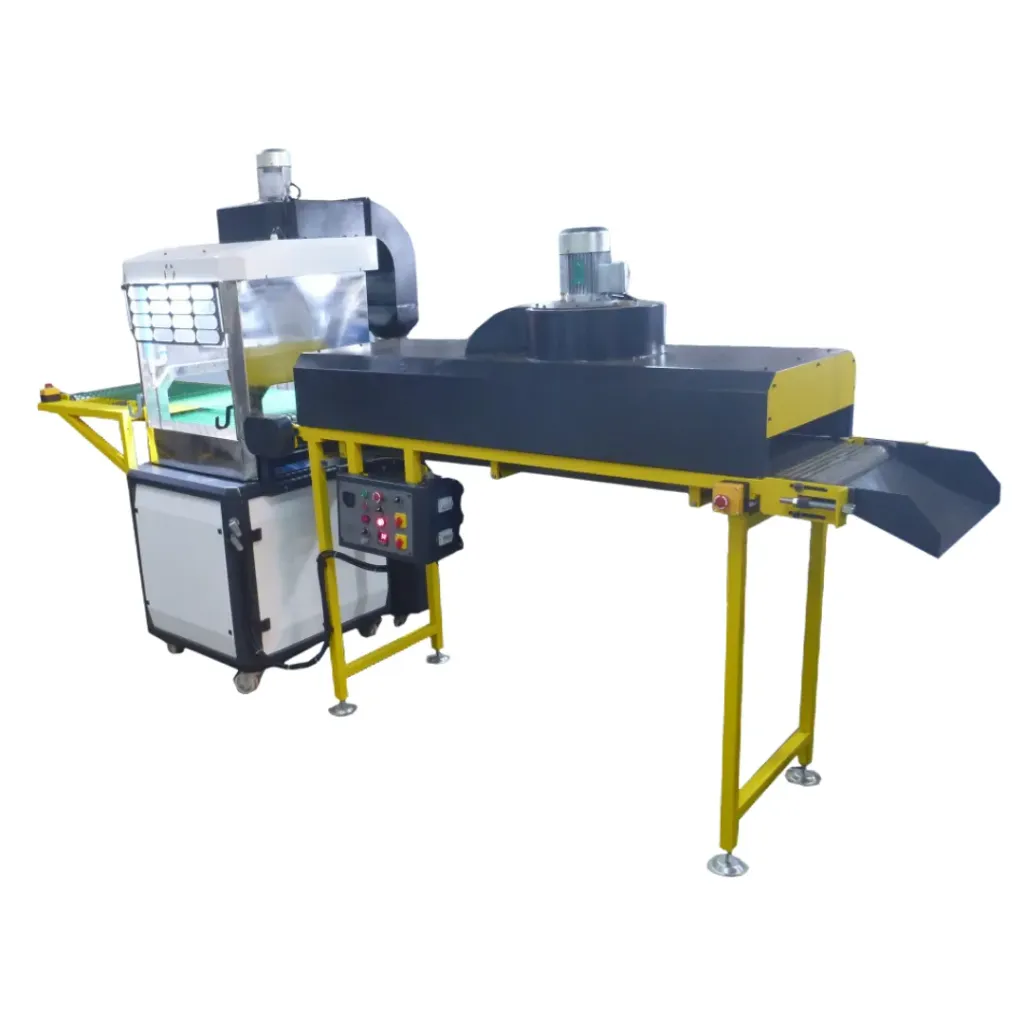

The Spray Booth with Drier Conveyor is used for spraying, drying and moving footwear components through a continuous finishing process.

• It combines spraying, drying and conveyor handling in one system.
• It helps absorb fumes during spraying for a cleaner workspace.
• The stainless-steel spray booth supports safe and durable operation.
• Dual-tank filtration helps control dust, air particles and overspray.
• The infrared drying unit speeds up drying and improves productivity.
• The rotary worktable and conveyor system support smooth high-volume production.

₹ 0.00 ₹ 0.00
  • Machine type
Contact Us
Machine type PR S 1509, PR 1509/SPTC

Spraying operations require controlled environments to ensure product quality while protecting operators from fumes and airborne particles. The Spray Booth with Drier Conveyor provides a comprehensive solution by combining spray application, fume extraction and conveyorized drying within a single integrated system.

The machine's advanced filtration and extraction system helps maintain a clean working environment, while the infrared drying technology reduces drying times and improves production throughput. With its continuous conveyor operation and rotary worktable design, this enhances workflow efficiency and supports high-volume manufacturing operations.

  • Integrated spray booth and drier conveyor system
  • Designed to absorb fumes from spraying operations
  • Dual-tank dust and air filtration system
  • Stainless steel spray booth construction
  • Multi-wave infrared drying system
  • Rope loading and spray area conveyor
  • Stainless steel mesh chain conveyor for drying
  • Rotary worktable for improved productivity
  • Low power consumption design
  • No water stagnation system
  • User-friendly operation
  • Heavy-duty industrial construction
FeatureBenefit
Integrated Spray & Drying SystemReduces handling time and improves workflow
Fume Extraction SystemCreates a safer and cleaner working environment
Dual-Tank Filtration SystemImproves air quality and operator safety
Infrared Drying TechnologyAccelerates drying and increases productivity
Stainless Steel ConstructionEnhances durability and corrosion resistance
Rotary WorktableImproves operator efficiency and throughput
Low Power ConsumptionReduces operating costs
Continuous Conveyor OperationSupports high-volume production environments
No Water Stagnation DesignSimplifies maintenance and improves hygiene
User-Friendly ControlsSimplifies operation and training
SpecificationPR S 1509PR 1509/SPTC
ModelPR S 1509PR 1509/SPTC
Machine TypeSpray Booth with Drier ConveyorSpray Booth with Conveyor Trolley System
Voltage415V AC415V AC
Power8.7 kW2.0 kW
Machine Weight380 Kg380 Kg
Gross Weight450 Kg450 Kg
Machine Dimensions (L × W × H)4145 × 1320 × 2254 mm2600 × 1400 × 2300 mm
Packing Dimensions (L × W × H)4295 × 1470 × 2404 mm—
Conveyor TypeSpray Area Conveyor with Integrated DrierTrolley Conveyor System
Conveyor LengthIntegrated System6 Feet
Speed ControlStandard Conveyor DriveVFD Controlled Conveyor

The PR S 1509 Spray Booth with Drier Conveyor is commonly used for:

  • Footwear component spraying
  • Sole coating operations
  • Adhesive spraying applications
  • Surface finishing processes
  • Leather finishing operations
  • Sports shoe manufacturing
  • Safety shoe production
  • Casual footwear manufacturing
  • Industrial coating applications
  • High-volume footwear production facilities

Efficient spraying and drying processes are essential for maintaining high product quality and production productivity. The PR S 1509 combines advanced fume extraction, infrared drying technology and conveyorized material handling into a single integrated solution. Its robust design, energy-efficient operation, operator safety features and continuous production capability help manufacturers improve finishing quality, reduce processing times and achieve greater operational efficiency in demanding production environments.

Specifications

Machine type PR S 1509, PR 1509/SPTC
