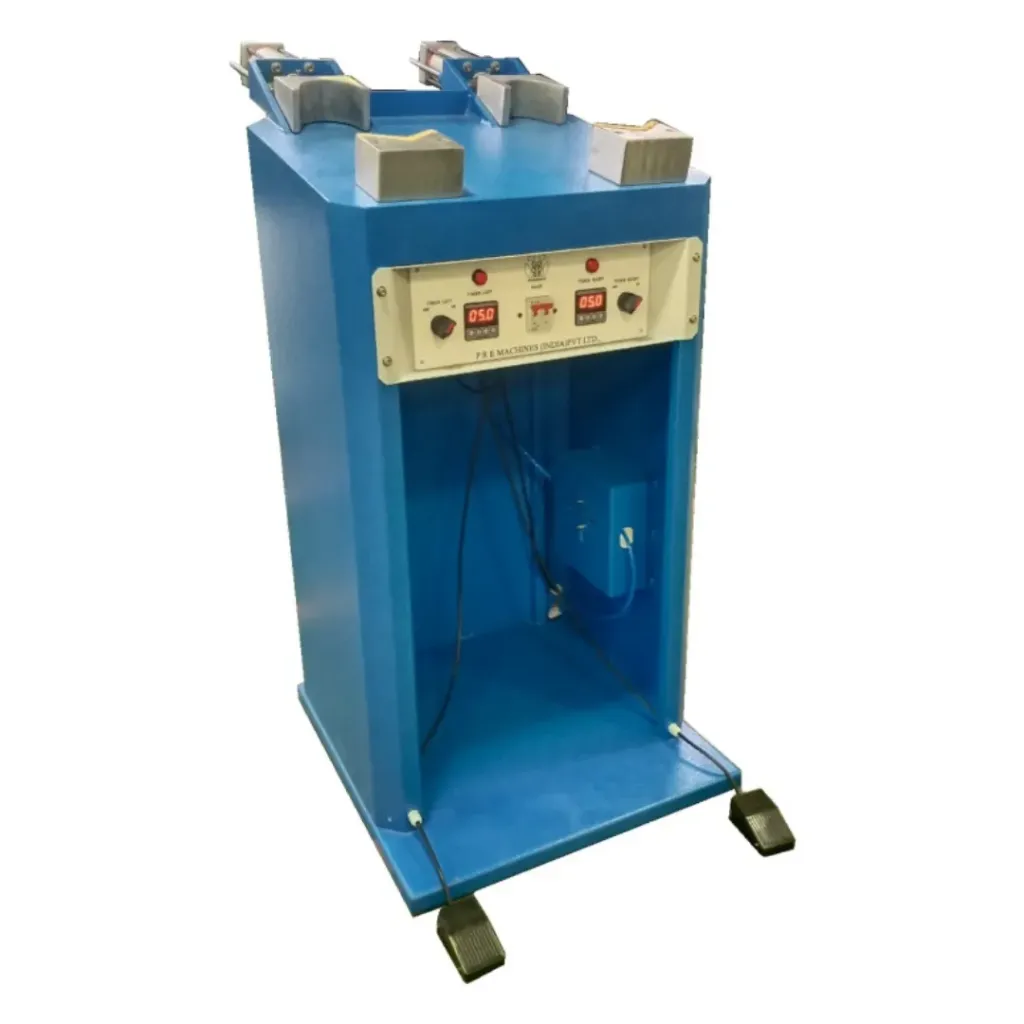

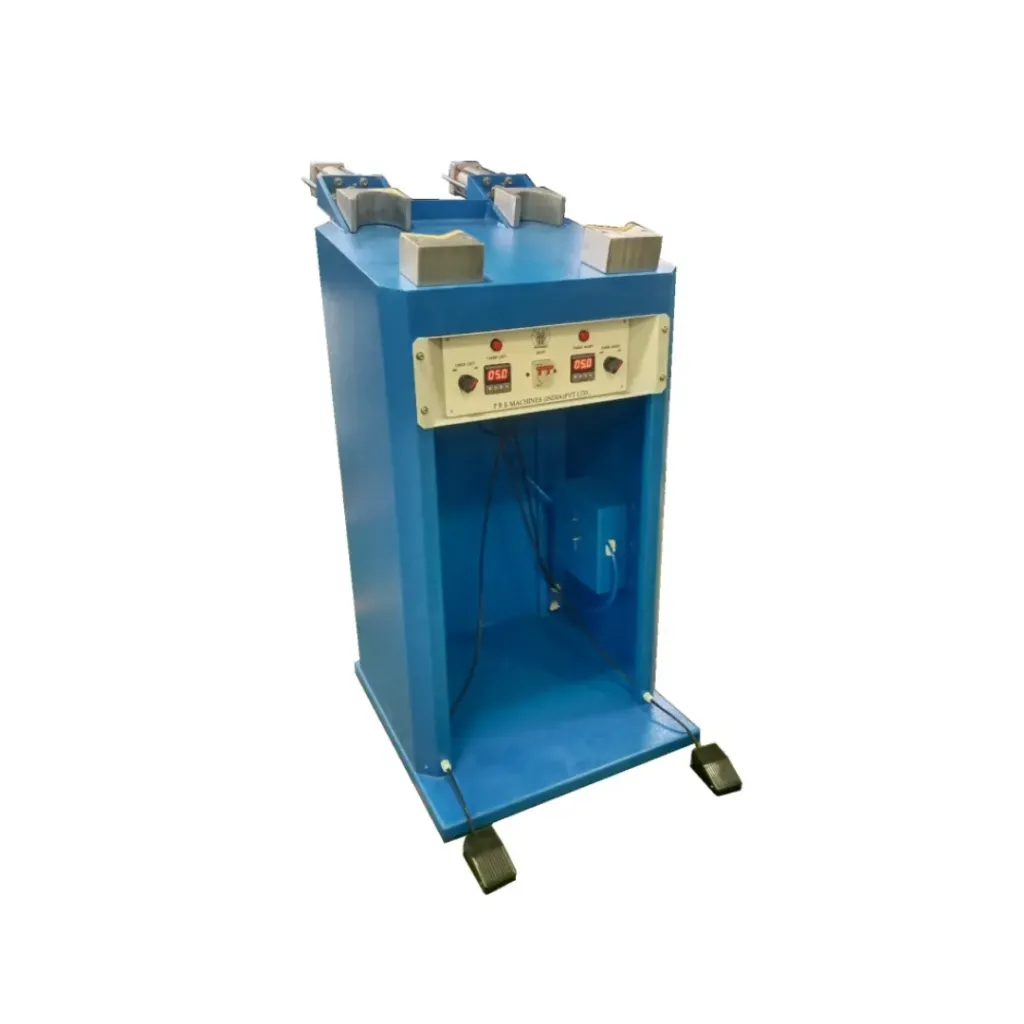

Toe Cap Attaching Machine

Toe Cap Attaching Machine

The Toe Cap Attaching Machine is a specialized thermo-pneumatic machine designed for attaching and activating thermoplastic toe caps in footwear uppers before lasting operations. The machine applies controlled heat and pressure to soften the adhesive layer of the toe cap and securely bond it to the upper material, ensuring accurate positioning, strong adhesion, and excellent shape retention. Toe cap attaching machines are widely used in footwear manufacturing to apply reinforcement materials that improve the structure, durability, and appearance of the toe area.

Designed for precision and productivity, the PR 1137 provides uniform heating and controlled pneumatic pressure to achieve consistent bonding results across different footwear styles. The machine helps eliminate wrinkles, improves toe shape definition, and reduces production defects caused by improper toe cap placement. Its robust construction, operator-friendly controls, and reliable operation make it an essential machine for formal footwear, safety shoes, sports shoes, and premium leather footwear manufacturing.

₹ 0.00 ₹ 0.00
  • Machine type
Contact Us
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Machine type PR 1137-S, PR 1137

Toe caps play a critical role in maintaining the shape, structure, and durability of footwear. Proper attachment of the toe cap is essential for achieving consistent quality and long-lasting performance. The PR 1137 Toe Cap Attaching Machine is specifically designed to activate and bond thermoplastic toe caps accurately before lasting operations.

Using controlled heat and pneumatic pressure, the machine softens the adhesive-coated toe cap and secures it firmly to the upper. This process improves reinforcement quality, enhances shape retention, and ensures consistent positioning across production batches. The result is improved footwear appearance, better structural support, and higher manufacturing efficiency.

  • Designed specifically for toe cap attaching operations
  • Thermo-pneumatic operating system
  • Heated toe cap activation system
  • Uniform heat distribution
  • Controlled pressure application
  • Accurate toe cap positioning
  • Suitable for thermoplastic toe caps
  • Consistent bonding performance
  • Adjustable temperature settings
  • Fast production cycle
  • User-friendly controls
  • Heavy-duty industrial construction
ParameterBenefit
Thermo-Pneumatic OperationEnsures consistent heat and pressure application
Toe Cap Activation SystemImproves bonding strength and durability
Uniform Heat DistributionProvides reliable adhesive activation
Precise PositioningEnsures accurate toe cap placement
Controlled Pressure ApplicationPrevents material distortion during bonding
Enhanced Toe ReinforcementImproves footwear structure and support
Better Shape RetentionMaintains footwear appearance over time
Faster Production CycleIncreases manufacturing productivity
User-Friendly ControlsSimplifies operation and setup
Industrial ConstructionEnsures long-term reliability and durability
SpecificationPR 1137PR 1137-S
Machine TypeToe Cap Attaching MachineToe Cap Attaching Machine
ApplicationSteel Toe Cap Attachment for Safety ShoesSteel Toe Cap Attachment for Safety Shoes
OperationElectro-PneumaticElectro-Pneumatic
Upper Holding SystemPneumatic Clamping SystemV-Shape Aluminium Mould
Toe Cap PositioningManual Positioning with Pneumatic PressingManual Positioning with Pneumatic Pressing
Seat SupportAdjustableAdjustable
Pressing TimeAdjustableAdjustable
ConfigurationDoubleDouble
Voltage240V AC240V AC
Power0.1 kW0.1 kW
Air Pressure6 Bar6 Bar
Machine Weight70 kg85 kg
Gross Weight110 kg120 kg
Dimensions (L × W × H)1004 × 450 × 1335 mm820 × 675 × 1245 mm
Packing Dimensions (L × W × H)1154 × 600 × 1485 mm970 × 825 × 1395 mm

The PR 1137 Toe Cap Attaching Machine is commonly used for:

  • Toe cap attaching operations
  • Formal footwear manufacturing
  • Safety shoe production
  • Sports shoe manufacturing
  • Casual footwear production
  • Leather footwear manufacturing
  • School shoe production
  • Boot manufacturing
  • Upper preparation departments
  • Lasting preparation processes
  • Reinforced footwear production
  • High-volume footwear manufacturing

The quality of toe reinforcement directly influences footwear appearance, durability, and shape retention. The PR 1137 Toe Cap Attaching Machine provides a dependable solution for accurately positioning and bonding thermoplastic toe caps while maintaining consistent production quality.

Its thermo-pneumatic technology, precise heat control, and reliable pressure application help manufacturers improve reinforcement quality, reduce production defects, and increase operational efficiency. For footwear manufacturers seeking superior toe shaping, strong adhesion, and dependable production performance, the PR 1137 is an essential machine for modern footwear manufacturing operations.

Specifications

Machine type PR 1137-S, PR 1137
