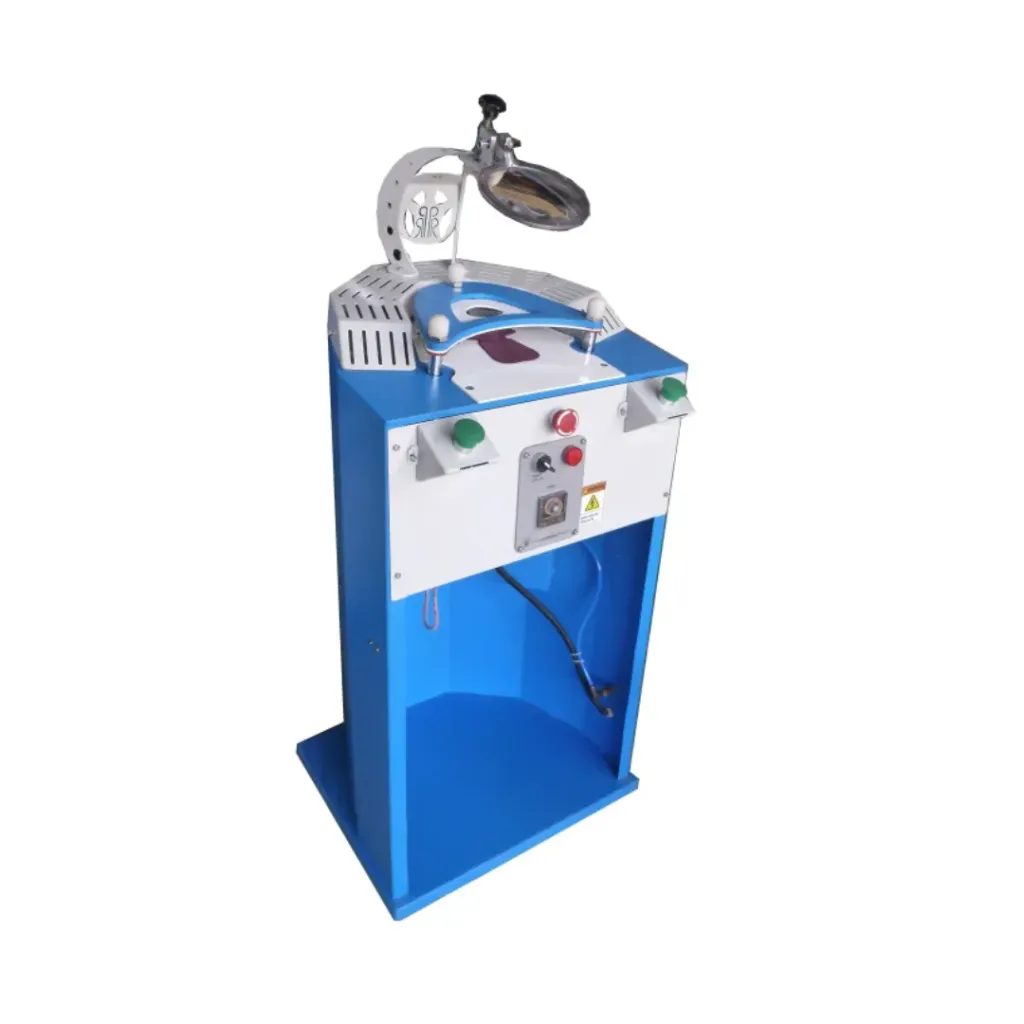

Vamp Stretching Machine

Vamp Stretching Machine

The  Vamp Stretching Machine is a specialized inspection machine designed to evaluate leather vamp components before they enter the footwear assembly process. By securely clamping the component and stretching it over a precision aluminium mould, the machine exposes hidden defects, wrinkles, grain inconsistencies, and surface imperfections that may otherwise go unnoticed during visual inspection.

Engineered for precision and reliability, the PR 1430/S utilizes a pneumatic operating system to apply uniform stretching pressure without damaging the material. Particularly effective for patent leather and other premium upper materials, the machine helps footwear manufacturers improve component quality, reduce production defects, and ensure consistent standards throughout the manufacturing process.

₹ 0.00 ₹ 0.00
  • Macxhine type
Contact Us
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Macxhine type PR 1430/S, PR 1430/D

Maintaining high-quality standards in footwear manufacturing begins with thorough inspection of individual upper components. The PR 1430/S Vamp Stretching Machine is specifically designed to inspect vamp sections by applying controlled stretching force, making defects and material inconsistencies clearly visible before assembly.

The machine uses a pneumatic clamping mechanism combined with a specially designed aluminium mould to stretch the vamp component uniformly. This process helps manufacturers identify flaws early in production, reducing wastage and preventing defective materials from progressing further down the manufacturing line. Its compact design and customizable construction make it a valuable quality-control solution for footwear manufacturers producing premium leather footwear.

  • Designed for inspection of leather vamp components
  • Pneumatic clamping and stretching system
  • Precision aluminium mould for uniform stretching
  • Highlights hidden defects and surface imperfections
  • Suitable for patent leather applications
  • Compact and space-saving design
  • Consistent pneumatic operation
  • Custom-built configurations available upon request
  • Improves material quality assessment
  • Heavy-duty industrial construction
  • Operator-friendly controls
  • Reliable and low-maintenance performance
ParameterBenefit
Pneumatic Clamping SystemProvides secure holding without damaging the material
Aluminium Stretching MouldEnsures uniform stretching across the vamp component
Defect Detection CapabilityReveals hidden flaws before assembly
Pre-Production InspectionReduces downstream quality issues
Patent Leather CompatibilityIdeal for premium and sensitive materials
Compact DesignSaves valuable production floor space
Customizable ConstructionAdapts to specific manufacturing requirements
Reliable Pneumatic OperationEnsures consistent inspection performance
Improved Quality ControlEnhances finished footwear quality
Reduced Material WasteMinimizes rejection and production losses
SpecificationPR 1430/SPR 1430/D
ModelPR 1430/SPR 1430/D
Machine TypeVamp Stretching MachineVamp Stretching Machine
ApplicationInspection of Leather Vamp ComponentsInspection of Leather Vamp Components
Clamping SystemFirm Leather ClampingFirm Leather Clamping
Inspection MethodDefects Highlighted by Pulling Leather Over Aluminium MouldDefects Highlighted by Pulling Leather Over Aluminium Mould
OperationPneumatic SystemPneumatic System
Voltage240V AC240V AC
Power0.1 kW0.1 kW
Air Pressure6 Bar6 Bar
Machine Weight40 Kg80 Kg
Gross Weight60 Kg100 Kg
Machine Dimensions (L × W × H)560 × 460 × 1220 mm900 × 460 × 1220 mm
Packing Dimensions (L × W × H)760 × 610 × 1370 mm1050 × 610 × 1370 mm

The  Vamp Stretching Machine is commonly used for:

  • Leather vamp inspection
  • Footwear upper manufacturing
  • Patent leather footwear production
  • Formal shoe manufacturing
  • Casual shoe manufacturing
  • Safety shoe production
  • Sports footwear manufacturing
  • Leather component quality control
  • Premium footwear manufacturing
  • Footwear sampling and development
  • Upper preparation departments
  • Leather goods production

The quality of the vamp directly impacts the appearance and performance of the finished shoe. The PR 1430/S Vamp Stretching Machine enables manufacturers to identify defects at an early stage, preventing costly production errors and ensuring only high-quality components move forward in the manufacturing process.

With its pneumatic stretching system, precision aluminium mould, and compact industrial design, the PR 1430/S offers a dependable solution for improving material inspection, reducing waste, and maintaining consistent product quality across footwear production lines.

Specifications

Macxhine type PR 1430/S, PR 1430/D
