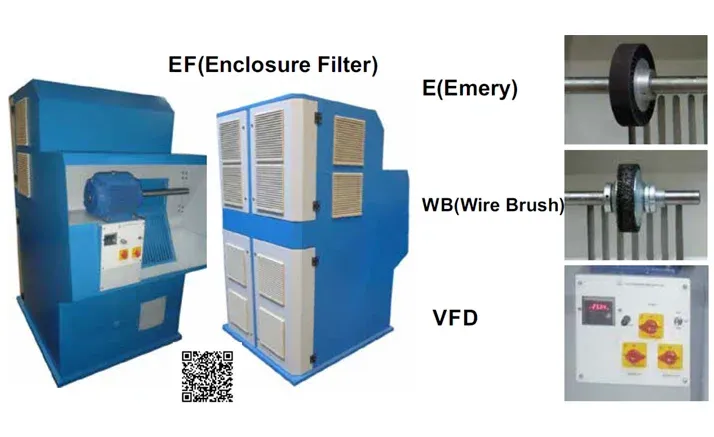

ROUGHENING AND SCOURING PR 1140/S/EF/E,WB,VFD
Scan QR code For Video Demostration
Used in Full shoe section for roughening and scouring the Lasted upper
- Double speed (2800 & 1440rpm)main motor with both side 350mm Extension shaft
- Individual suction motor with control
- Dust collection bag with micron bag filter
- Filter bag Covered by Metal Enclosure with Micron Filter
- Speed control VFD Optional
- Emery wheel (OD:90mm & Width:35mm, OD:140mm & Width:35mm, OD:140mm & Width:100mm
- Scouring wire brush with collet as per request
Technical Data
Voltage
415v-AC
Power
1.52 Kw
Machine weight
150 Kg
Gross Weight
210 Kg
Dimension
896x1355x1616
Packing Dim
1046x1505x1766
