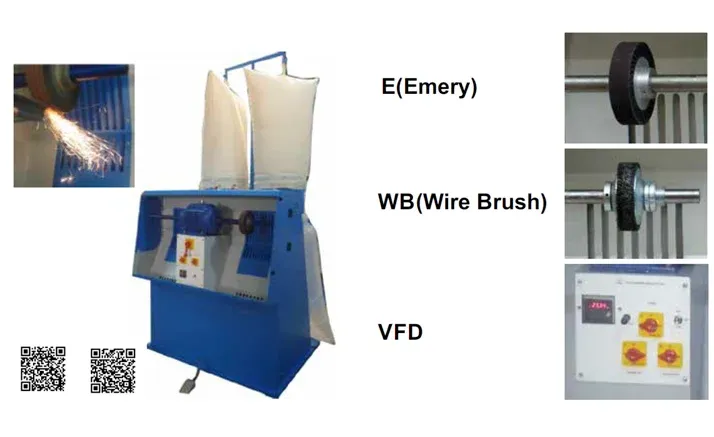

ROUGHENING AND SCOURING PR 1140/D/F/E,WB,VFD
Scan QR code For Video DemostrationUsed in Full shoe section for roughening and scouring the Lasted upper.
- Double speed (2800 & 1440rpm)main motor with both side 350mm Extension shaft
- Individual suction motor with control
- Dust collection bag with micron bag filter
- Pedal operated timer based Water Spray system
- Speed control VFD Optional
- Emery wheel (OD:90mm & Width:35mm, OD:140mm & Width:35mm, OD:140mm & Width:100mm
- Scouring wire brush with collet as per request
Technical Data
Voltage
415v-AC
Power
2.3 Kw
Machine weight
175 Kg
Gross Weight
245 Kg
Dimension
1150x1220x1455
Packing Dim
1300x1370x1605
